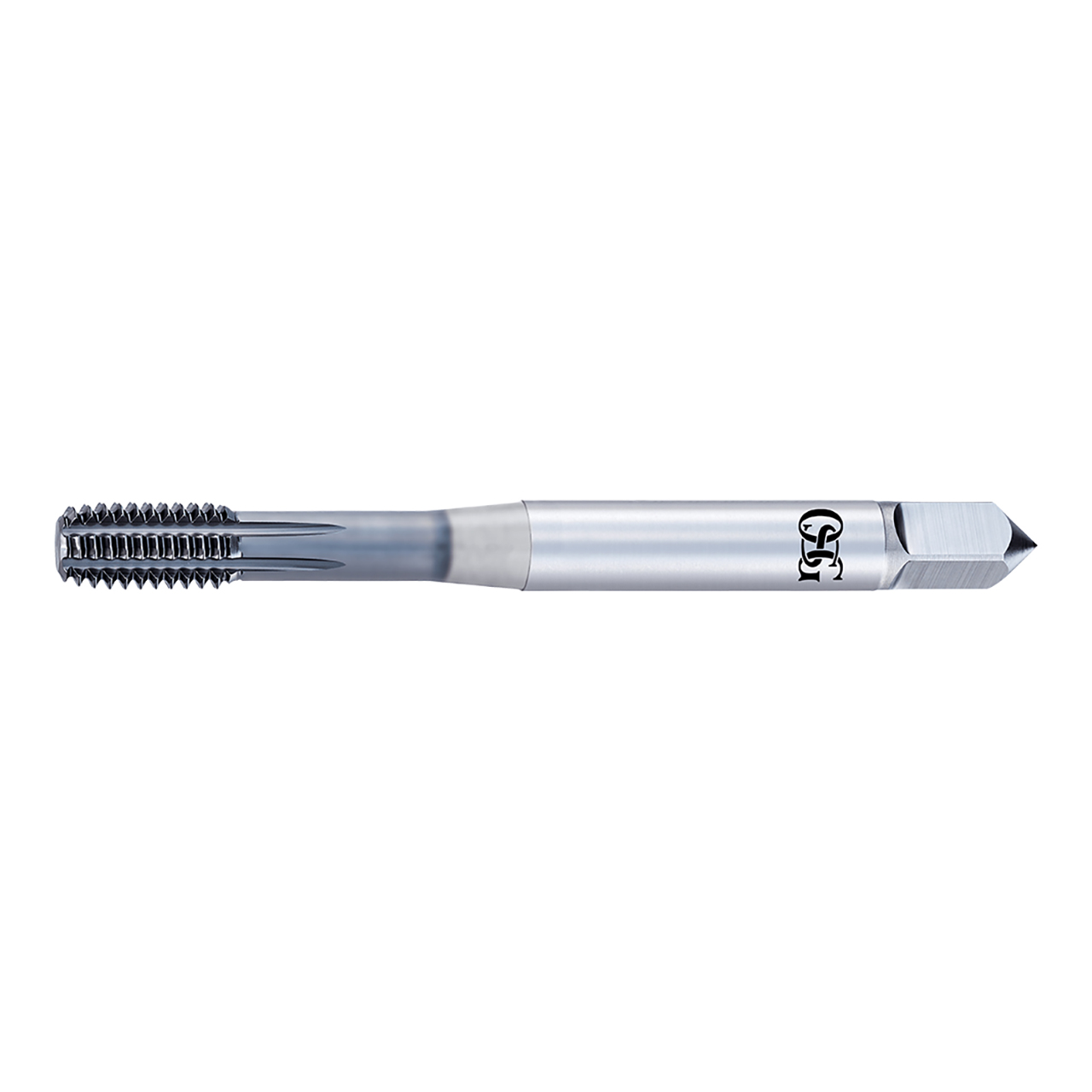

OSG's A Brand XPF forms threads by deformation of the work Material and does not generate Cutting chips resolving Tapping troubles that are caused by unstable chip evacuation. The A-XPF enables the reduction of tool change time caused by Cutting chip troubles and machine downtime required for removing accumulated Cutting chips. Enabling stable and uninterrupted machining, the A-XPF can reduce power consumption, which minimized environmental impact.
Features & Benefits:
- Special chamfer specification: Achieves stable machining with reduced thrust
- Special thread configuration: Improved Cutting Edge and thread rigidity
- New VI Coating formulated for high-performance Taps: Is suitable for high-loading machining with high-Hardness, oxidation Resistance and excellent Lubricity
Product Specifications
| Manufacturer Part Number | 2635035616 |
| Chamfer Length (Decimal Inch) | 0.035" |
| Major Diameter (mm) | 3.50mm |
| Neck Length (mm) | 20.00mm |
| Overall Length (mm) | 56.00mm |
| Pitch (mm) | 0.60mm |
| Shank Diameter (mm) | 3.58mm |
| Square Length (mm) | 4.76mm |
| Square Width (mm) | 2.79mm |
| Maximum Tap Drill Size (mm) | 3.24mm |
| Minimum Tap Drill Size (mm) | 3.16mm |
| Thread Length (mm) | 7.20mm |
| Thread Size | M3.5 |
| Coating | VI |
| Material | VC-10 |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (mm):
56.00mm
Shank Diameter (mm):
3.58mm
Material:
VC-10
Finish/Coating:
VI
Cutting Direction:
Right Hand
Neck Length (mm):
20.00mm
Square Length (mm):
4.76mm
Pitch (mm):
0.60mm
Thread Length (mm):
7.20mm
Chamfer Length (Decimal Inch):
0.0350"
