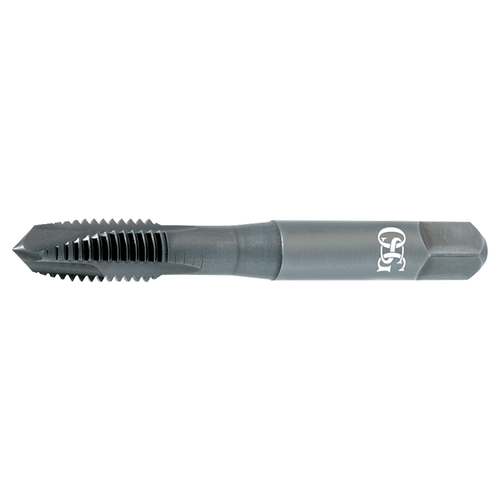

HY-PRO DIN is the original "Do it All" premium spiral point Tap for a wide range of Materials.
Features & Benefits:
- HSSE Material: Increased Wear Resistance
- Spiral Point: For through Hole Applications
- Bright, Steam Oxide Surface Treatment: S/O Increases Mechanical Lubricity
- TiCN coating: Improves Wear Resistance for extended Tap life
Product Specifications
| Manufacturer Part Number | 2816501 |
| Chamfer Length (Decimal Inch) | 0.083" |
| Major Diameter (Decimal Inch) | 0.112" |
| Neck Length (Decimal Inch) | 0.559" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 1.874" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Square Length (Decimal Inch) | 0.188" |
| Square Width (Decimal Inch) | 0.110" |
| Maximum Tap Drill Size (Decimal Inch) | 0.097" |
| Minimum Tap Drill Size (Decimal Inch) | 0.089" |
| Thread Length (Decimal Inch) | 0.295" |
| Thread Size Number | No. 4 |
| Coating | Steam Oxide |
| Material | HSSE |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (Decimal Inch):
1.8740"
Shank Diameter (Decimal Inch):
0.1410"
Number of Flutes:
2
Material:
HSSE
Finish/Coating:
Steam Oxide
Cutting Direction:
Right Hand
Neck Length (Decimal Inch):
0.5590"
Square Length (Decimal Inch):
0.1880"
Thread Length (Decimal Inch):
0.2950"
Chamfer Length (Decimal Inch):
0.0830"
