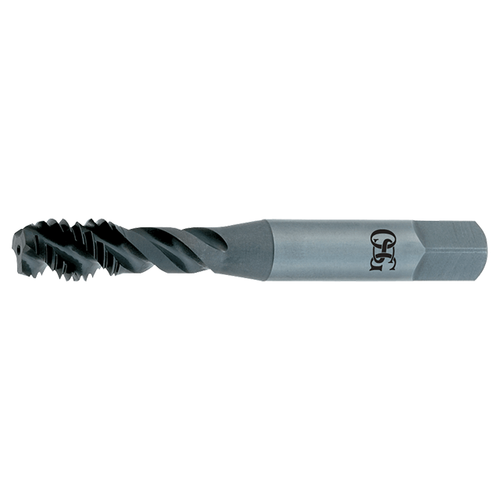

HY-PRO is the original "Do it All" premium spiral flute Tap for a wide range of Materials.
Features & Benefits:
- HSSE Material: Increased Wear Resistance
- Spiral Flute: For Blind Hole Applications
- Bright, Steam Oxide Surface Treatment: S/O Increases Mechanical Lubricity
- TiCN coating: Improves Wear Resistance for extended Tap life
Product Specifications
| Manufacturer Part Number | 2917701 |
| Chamfer Length (Decimal Inch) | 0.078" |
| Major Diameter (Decimal Inch) | 0.138" |
| Neck Length (Decimal Inch) | 0.685" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.000" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Square Length (Decimal Inch) | 0.188" |
| Square Width (Decimal Inch) | 0.110" |
| Maximum Tap Drill Size (Decimal Inch) | 0.114" |
| Minimum Tap Drill Size (Decimal Inch) | 0.104" |
| Thread Length (Decimal Inch) | 0.248" |
| Thread Size Number | No. 6 |
| Coating | Steam Oxide |
| Material | HSSE |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Decimal Inch):
0.1410"
Helix Angle:
45 Degree
Number of Flutes:
3
Material:
HSSE
Finish/Coating:
Steam Oxide
Cutting Direction:
Right Hand
Neck Length (Decimal Inch):
0.6850"
Square Length (Decimal Inch):
0.1880"
Thread Length (Decimal Inch):
0.2480"
Chamfer Length (Decimal Inch):
0.0780"
