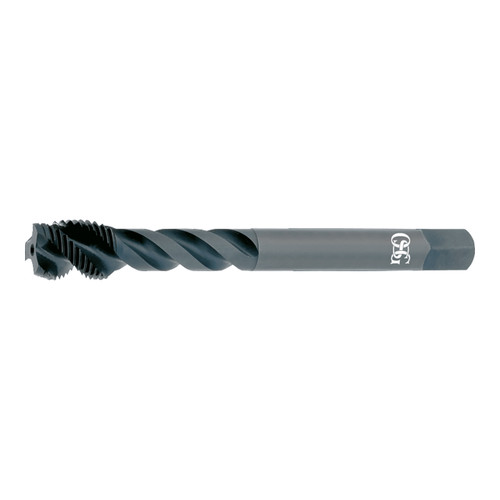

HY-PRO is the original "Do it All" premium spiral flute Tap for a wide range of Materials.
Features & Benefits:
- HSSE Material: Increased Wear Resistance
- Spiral Flute: For Blind Hole Applications
- Bright, Steam Oxide Surface Treatment: S/O Increases Mechanical Lubricity

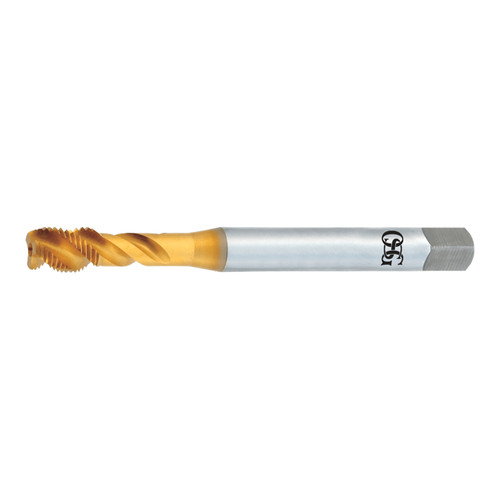

- TiCN coating: Improves Wear Resistance for extended Tap life
Product Specifications
| Manufacturer Part Number | 2992501 |
| Chamfer Length (Decimal Inch) | 0.148" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | SFT |
| Major Diameter (mm) | 14.00mm |
| Neck Length (mm) | 50.08mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 91.30mm |
| Pitch (mm) | 1.50mm |
| Shank Diameter (mm) | 10.90mm |
| Square Length (mm) | 12.70mm |
| Square Width (mm) | 8.18mm |
| Material | HSSE |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (mm) | 12.68mm |
| Tap Drill Size Minimum (mm) | 12.38mm |
| Thread Length (mm) | 16.00mm |
| Thread Limit | D6 |
| Thread Size | M14 |
| Thread Type | MF |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Chamfer Length (Decimal Inch):
0.1480"
Cutting Direction:
Right Hand
Helix Angle:
45 Degree
Neck Length (mm):
50.08mm
Number of Flutes:
3
Overall Length (mm):
91.30mm
Pitch (mm):
1.50mm
Shank Diameter (mm):
10.90mm
Square Length (mm):
12.70mm
Material:
HSSE
Finish/Coating:
Steam Oxide
Thread Length (mm):
16.00mm
Thread Limit:
D6
Thread Size:
M14
Thread Type:
MF
