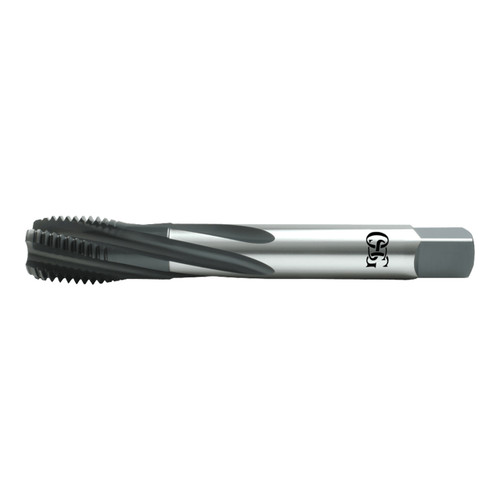

HY-PRO is the original "Do it All" premium spiral flute tap for a wide range of materials.
Features & Benefits:
- HSSE material: Increased wear resistance
- Spiral Flute: For blind hole applications
- Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
- TiCN coating: Improves wear resistance for extended tap life
Product Specifications
| Manufacturer Part Number | 2994401 |
| Chamfer Length (Decimal Inch) | 0.295" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | SFT |
| Major Diameter (mm) | 24.00mm |
| Neck Length (mm) | 68.40mm |
| Number of Flutes | 4 |
| Overall Length (mm) | 124.60mm |
| Pitch (mm) | 3.00mm |
| Shank Diameter (mm) | 19.30mm |
| Square Length (mm) | 19.05mm |
| Square Width (mm) | 14.48mm |
| Material | HSSE |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (mm) | 21.25mm |
| Tap Drill Size Minimum (mm) | 20.75mm |
| Thread Length (mm) | 24.00mm |
| Thread Limit | D8 |
| Thread Size | M24 |
| Thread Type | M |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Chamfer Length (Decimal Inch):
0.2950"
Cutting Direction:
Right Hand
Helix Angle:
45 Degree
Neck Length (mm):
68.40mm
Number of Flutes:
4
Overall Length (mm):
124.60mm
Pitch (mm):
3.00mm
Shank Diameter (mm):
19.30mm
Square Length (mm):
19.05mm
Material:
HSSE
Finish/Coating:
Steam Oxide
Thread Length (mm):
24.00mm
Thread Limit:
D8
Thread Size:
M24
Thread Type:
M
