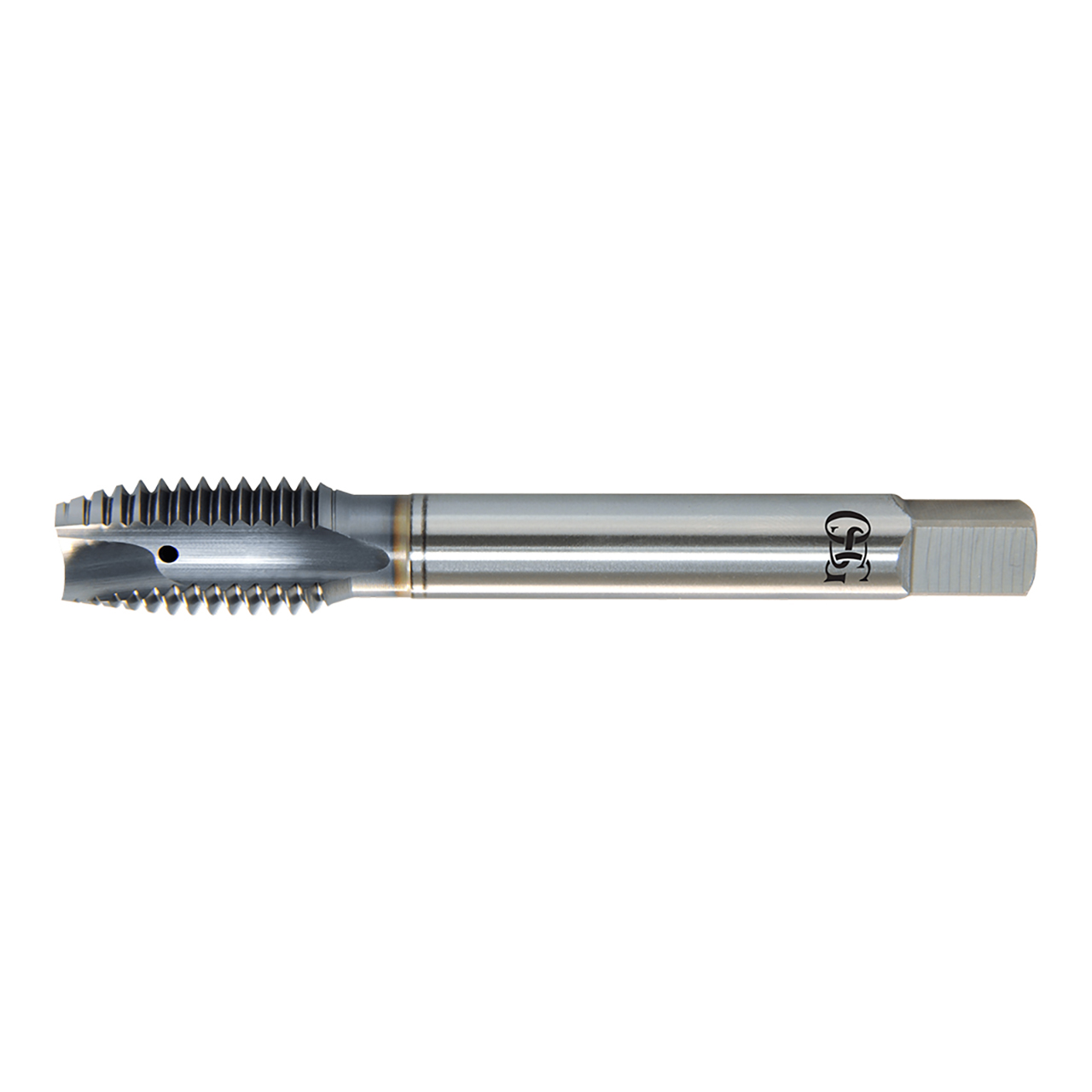

EXOTap VA-3 is the premium solution for Tapping performance in stainless steels.
Features & Benefits:
- HSSE Material: Increased Wear Resistance
- Spiral Point: For through Hole Applications
- OSG V-Coating: Increased Hardness, Lubricity & Wear Resistance
- DIN Overall Length: Provides additional Reach Capability
Product Specifications
| Manufacturer Part Number | 34602108 |
| Chamfer Length (Decimal Inch) | 0.236" |
| Major Diameter (mm) | 22.00mm |
| Neck Length (mm) | 44.00mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 125.00mm |
| Pitch (mm) | 1.50mm |
| Shank Diameter (mm) | 17.70mm |
| Square Length (mm) | 19.05mm |
| Square Width (mm) | 13.28mm |
| Maximum Tap Drill Size (mm) | 20.68mm |
| Minimum Tap Drill Size (mm) | 20.38mm |
| Thread Length (mm) | 30.00mm |
| Thread Size | M22 |
| Coating | V |
| Material | HSSE |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (mm):
125.00mm
Shank Diameter (mm):
17.70mm
Number of Flutes:
3
Material:
HSSE
Finish/Coating:
V
Cutting Direction:
Right Hand
Neck Length (mm):
44.00mm
Square Length (mm):
19.05mm
Pitch (mm):
2.50mm
Thread Length (mm):
30.00mm
Chamfer Length (Decimal Inch):
0.3940"
