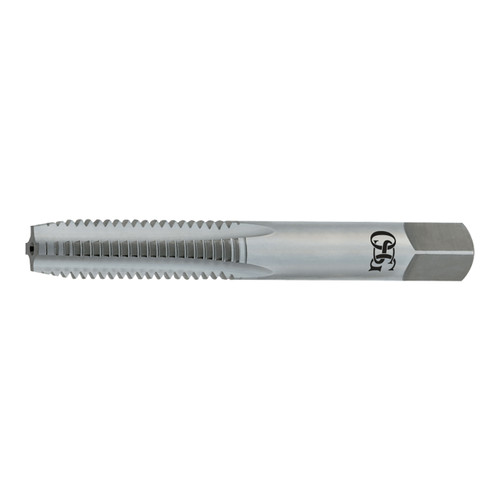

General Purpose Tap series provides exceptional value for Tapping helicoil (STI) threads in a variety of ferrous and nonferrous metals.
Features & Benefits:
- HSS Material: Increased Wear Resistance
- Straight Flute: For through or Blind Holes and short chipping Materials
- Inch & Metric: Complete Offering
- Screw Thread Insert (STI) Tap: Repair stripped threaded Holes
Product Specifications
| Manufacturer Part Number | 6006000 |
| Chamfer Length (Decimal Inch) | 0.100" |
| Major Diameter (Decimal Inch) | 0.125" |
| Neck Length (Decimal Inch) | 0.933" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.197" |
| Shank Diameter (Decimal Inch) | 0.168" |
| Square Length (Decimal Inch) | 0.250" |
| Square Width (Decimal Inch) | 0.131" |
| Maximum Tap Drill Size (Decimal Inch) | 0.137" |
| Minimum Tap Drill Size (Decimal Inch) | 0.131" |
| Thread Length (Decimal Inch) | 0.374" |
| Thread Size Number | No. 5 |
| Coating | Bright |
| Material | HSS |
| Product Type | Hand STI Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Overall Length (Decimal Inch):
2.1970"
Shank Diameter (Decimal Inch):
0.1680"
Number of Flutes:
3
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Neck Length (Decimal Inch):
0.9330"
Square Length (Decimal Inch):
0.2500"
Thread Length (Decimal Inch):
0.3140"
Chamfer Length (Decimal Inch):
0.0830"
