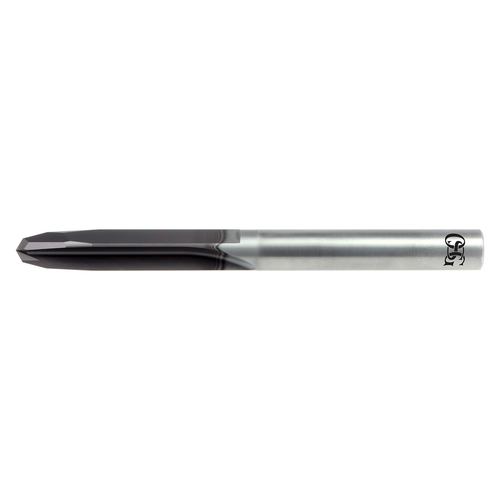

The EXOPRO AERO-S is a high helix diamond coated drill designed for composites and metal stack Materials. It is specifically developed to shear through tough fibers. It features OSG's patented diamond coating and unique geometries such as high helix to assist in chip evacuation.
Features & Benefits:
- High helix angle: Shears through tough fibers
- Drill point designed for Cutting stacks: Provides optimal Cutting geometry for Cutting multiple Material stacks
- Thin web and wide flutes: Reduces thrust and improves chip evacuation
- OSG's patented diamond coating: Ensures smoother and sharper Cutting Edges providing up to 50 times longer tool life
Product Specifications
| Manufacturer Part Number | 753016116 |
| Diameter (Decimal Inch) | 0.162" |
| Diameter (mm) | 4.10mm |
| Flute Length (mm) | 25.40mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 101.60mm |
| Shank Diameter (mm) | 4.10mm |
| Coating | DIAMOND |
| Material | Carbide |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 40 Degree |
| Point Angle (Degree) | 120 Degree |
| Product Type | Jobber Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Diameter (Decimal Inch):
0.1620"
Overall Length (mm):
101.60mm
Shank Diameter (mm):
4.10mm
Helix Angle:
40 Degree
Number of Flutes:
2
Material:
Carbide
Finish/Coating:
DIAMOND
Cutting Direction:
Right Hand
Pitch (mm):
1.00mm
Chamfer Length (Decimal Inch):
0.1970"
interval quantity:
1
