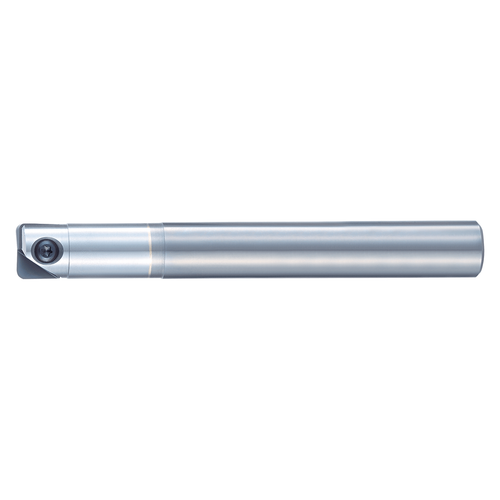

PHOENIX PFR is a series of high precision indexable finish radius end mills for superior Surface finish and tool life.
Features & Benefits:
- Very high insert diameter (+0 / -20µm) and corner radius precision (±8µm): Superior milling Surface finish
- Spiral Cutting Edge: Excellent Cutting Edge strength and sharpness
- Steel and Carbide tool shanks: Reduces chatter and provides favorable milling Surface when machining at short or long overhangs
- End mill style, Inch and Metric: Complete Offering
Product Specifications
| Manufacturer Part Number | 7832044 |
| Cutting Direction | Right Hand |
| Diameter (mm) | 20.00mm |
| L/D Ratio | 4.5000 |
| List Name | PFR SS |
| Neck Diameter d1 (mm) | 19.50mm |
| Neck Length (mm) | 90.00mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 180.00mm |
| Shank Diameter (mm) | 20.00mm |
| Material | Carbide |
| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Cutting Direction:
Right Hand
Diameter (mm):
20.00mm
Neck Diameter (mm):
19.50mm
Neck Length (mm):
90.00mm
Number of Flutes:
2
Overall Length (mm):
180.00mm
Shank Diameter (mm):
20.00mm
Material:
Carbide
