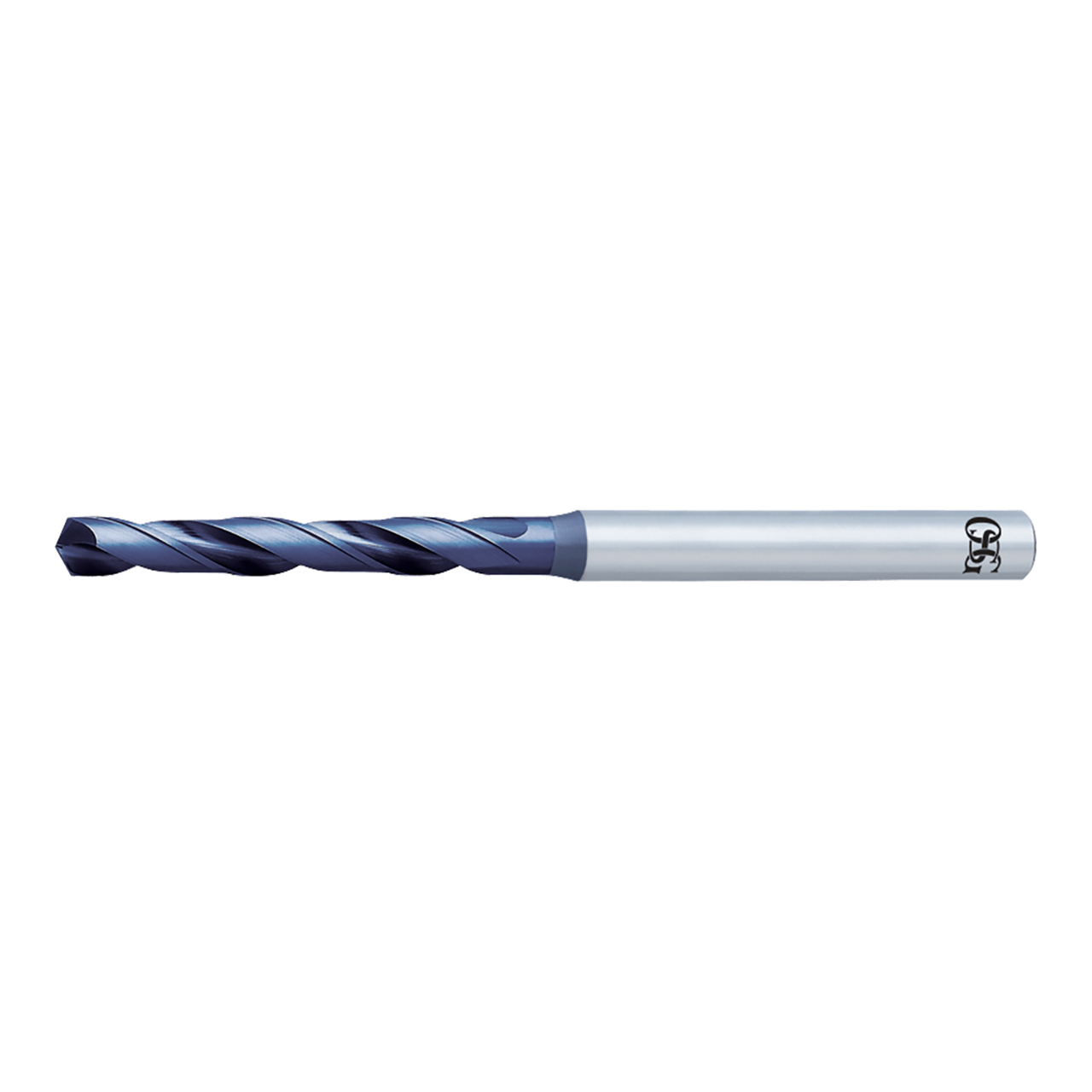

The VPH V-Series drill line is the ideal drilling solution when dealing with exotic Materials like Inconel, and when through-tool coolant is not available. OSG's proprietary XPM powedered metal Substrate combined withvery own V-coating produces the hardest and most Wear resistant drill possible when compared to all other HSS drills.
Features & Benefits:
- Radial Point Thinning: No center drills neeeded Achieves high accuracy while reducing drill thrust force for longer tool life
- OSG V-Coating: OSG's very own recipe which features a combination of Titanium Nitride and layered Titanium Carbon Nitride
- XPM Powdered Metal Substrate: Harder than T15 CPM, this Substrate yields maximum Hardness for maximum Wear Resistance
Product Specifications
| Manufacturer Part Number | 8612287 |
| Diameter (Decimal Inch) | 0.113" |
| Diameter (mm) | 2.87mm |
| Flute Length (mm) | 33.00mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 65.00mm |
| Shank Diameter (mm) | 3.00mm |
| Coating | V |
| Material | XPM |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 30 Degree |
| Point Angle (Degree) | 130 Degree |
| Product Type | Jobber Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Diameter (Decimal Inch):
0.1130"
Overall Length (mm):
65.00mm
Shank Diameter (mm):
3.00mm
Helix Angle:
30 Degree
Number of Flutes:
2
Material:
XPM
Finish/Coating:
V
Cutting Direction:
Right Hand
Point Angle:
130 Degree
