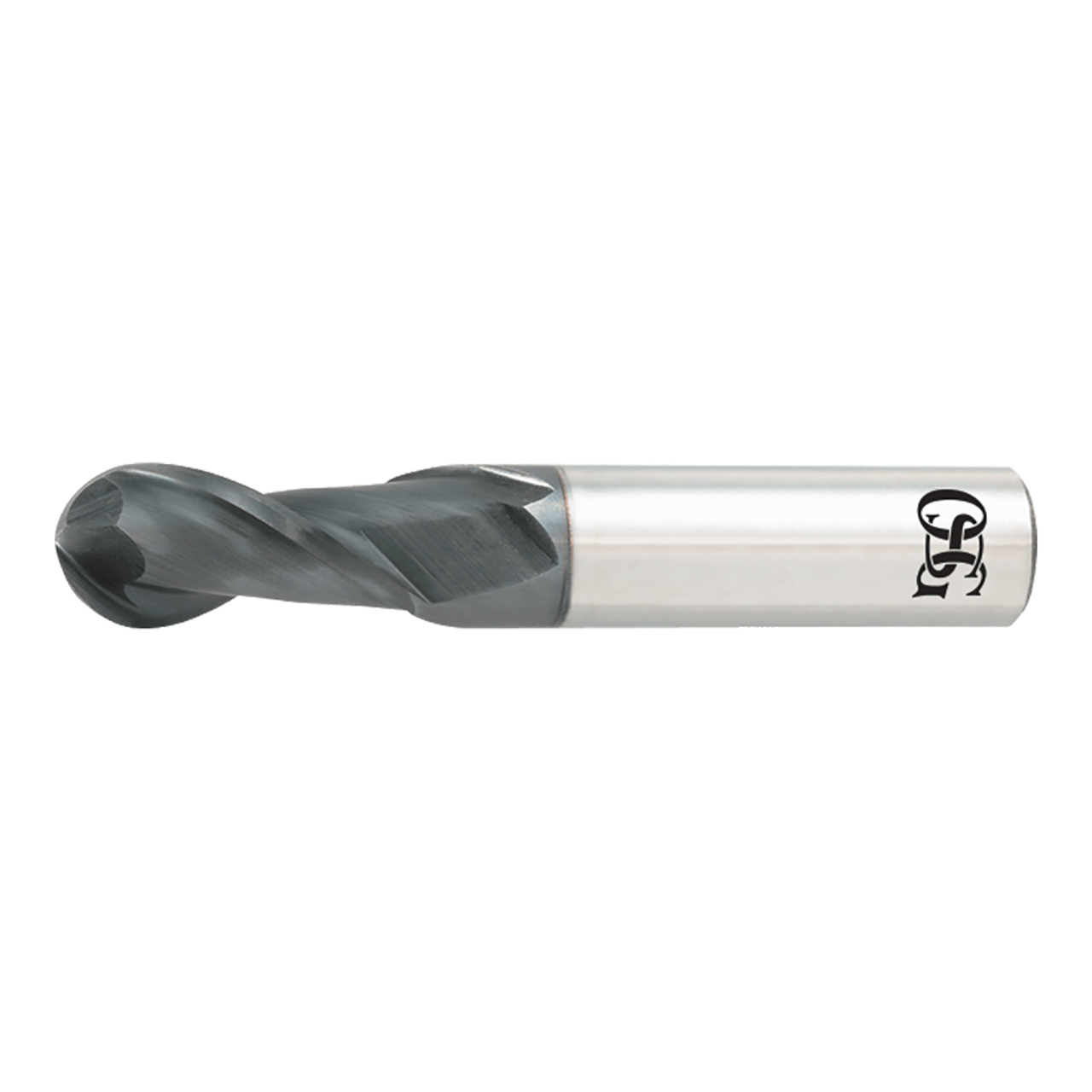

OSG HP421-1094-BN | HY-PRO CARB 0.109" Diameter x 0.125" Shank x 0.375" LOC x 0.055" Radius x 1.500" OAL x 35 Degree Helix Angle 2 Flute TiAlN Coated Carbide Ball Nose End Mill

$19.78
Brand:
OSG
Diameter (Decimal Inch):
0.1090"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Decimal Inch):
0.1250"
Helix Angle:
35 Degree
Length of Cut (Decimal Inch):
0.3750"
Number of Flutes:
2
Material:
Carbide
Finish/Coating:
TiAlN
Corner Radius (Decimal Inch):
0.0550"
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25290963
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG HP421-1094-BN | HY-PRO CARB 0.109" Diameter x 0.125" Shank x 0.375" LOC x 0.055" Radius x 1.500" OAL x 35 Degree Helix Angle 2 Flute TiAlN Coated Carbide Ball Nose End Mill

Performance Carbide TiAlN End Mills for Ferrous and Non-Ferrous Materials

Product Specifications
Manufacturer Part NumberHP421-1094-BN
Corner Radius (Decimal Inch)0.055"
Diameter (Decimal Inch)0.109"
Length of Cut (Decimal Inch)0.375"
Number of Flutes2
Overall Length (Decimal Inch)1.500"
Shank Diameter (Decimal Inch)0.125"
CoatingTiAlN
MaterialCarbide
Helix DirectionRight Hand
Helix Angle (Degree)35 Degree
Product TypeBall Nose End Mill
