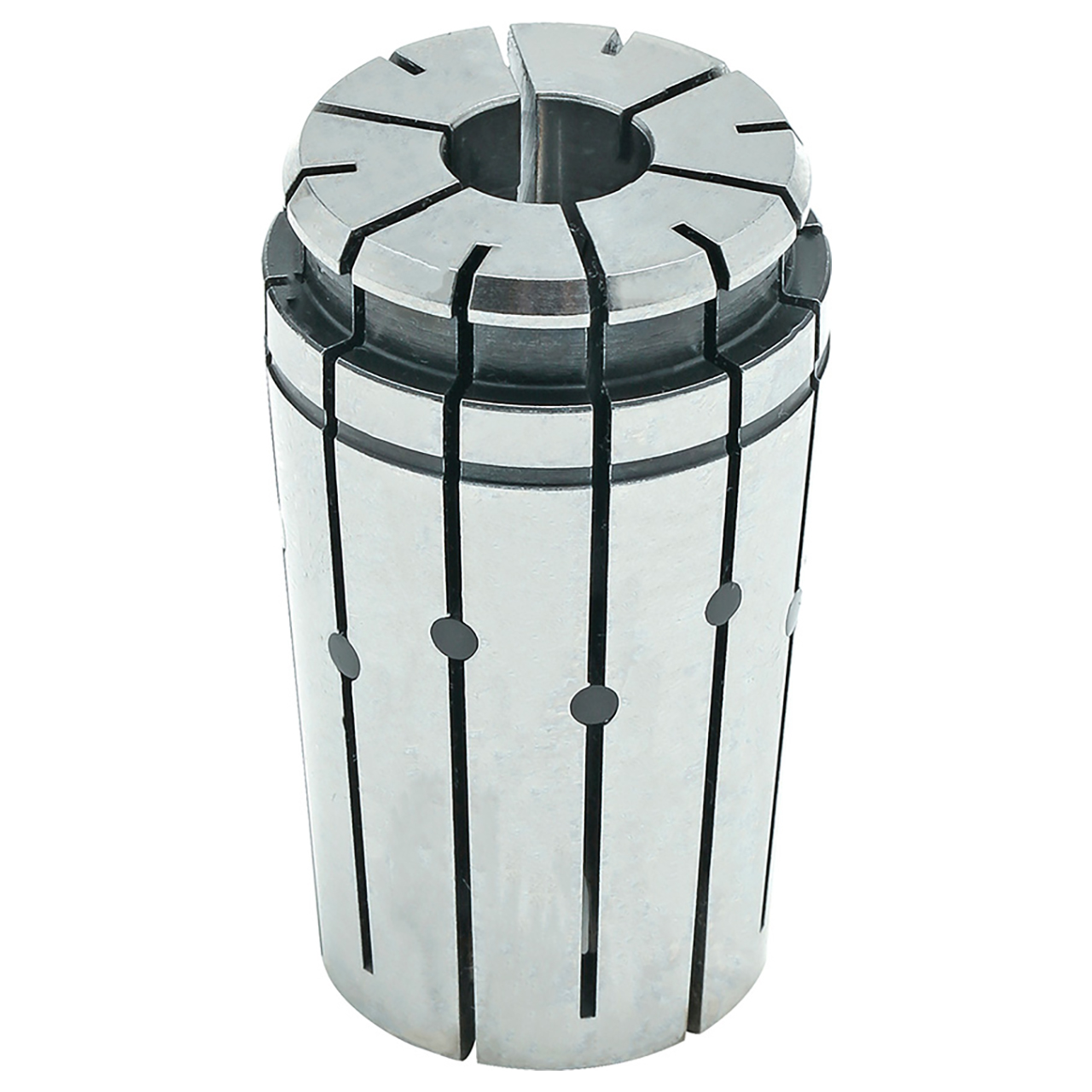

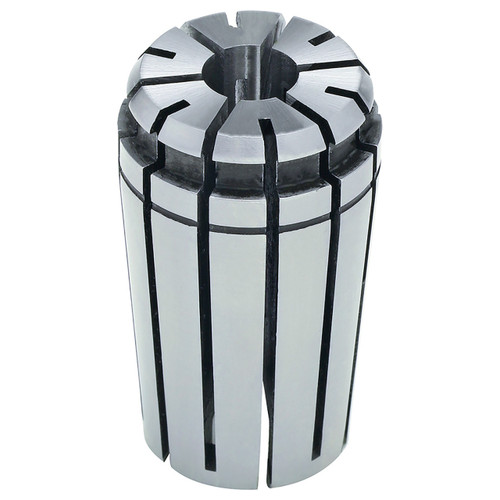

Parlec 100RPG-0859 | 1.379" Diameter x 55/64" Shank x 2.375" OAL Single Angle Collet

$67.00 $43.55
(You save $23.45)
Brand:
Parlec
Collet Series:
PG100
Size (Inch):
55/64"
Size (mm):
21.83mm
Size (Decimal Inch):
0.86"
Overall Length (Inch):
2-3/8"
Overall Length (mm):
60.33mm
SKU:
55009646
UPC:
Weight:
0.50 LBS
Shipping:
Calculated at Checkout

Features:

  • Made from high-carbon bearing steel for improved flexibility
  • 0.0004" max. T.I.R
  • Clamping range 1/64"
  • Precision ground and hand inspected

Product Specifications
Collet SeriesPG100
Overall Diameter (Inch)1.379"
Body Width (Inch)1.379"
Capacity (Inch)0.844-0.859"
Min Capacity (Inch)0.844"
Max Capacity (Inch)0.859"
Overall Length (Inch)2.375"
Shank Size (Inch)55/64"
