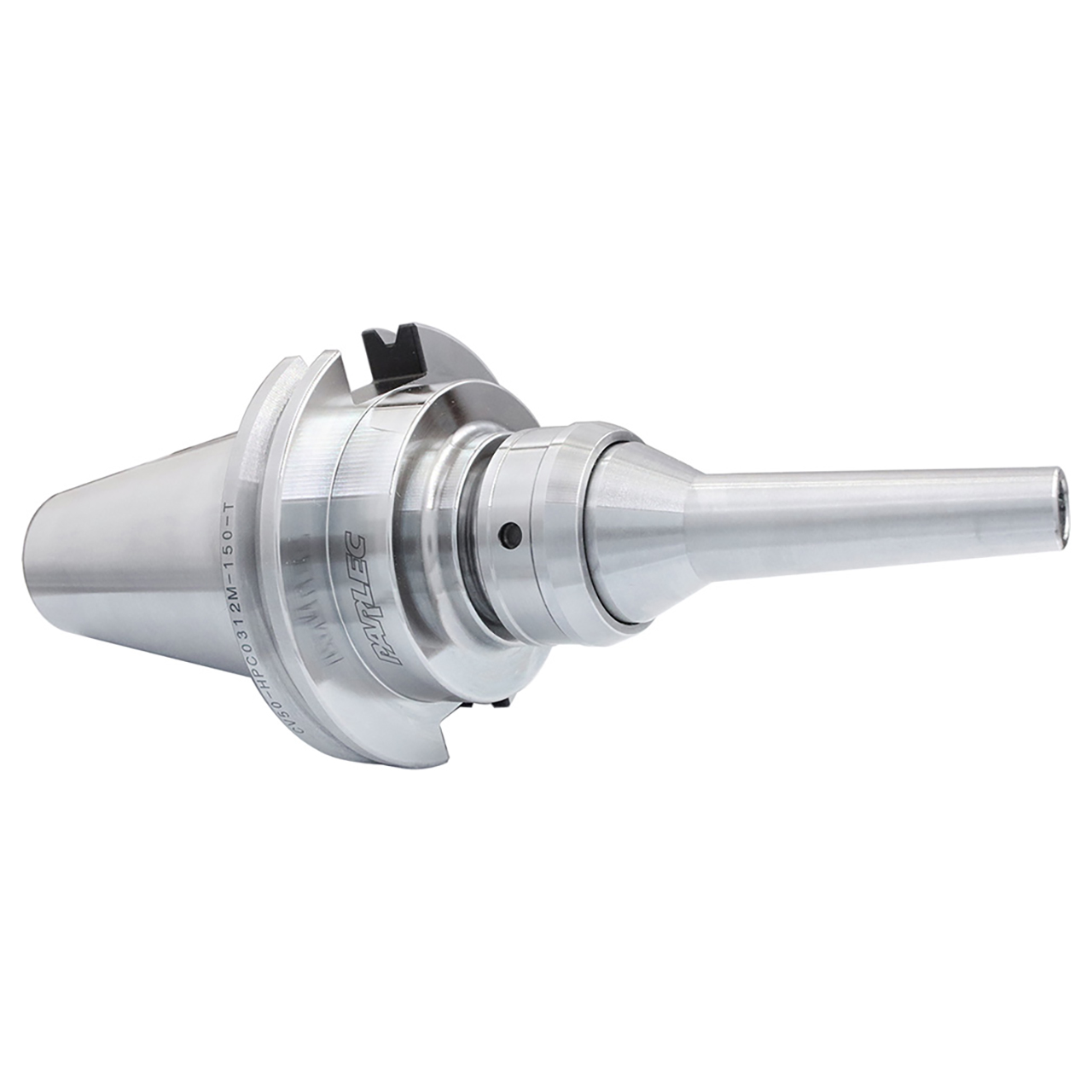

Features:
- Narrow nose design allows for deep, hard-to-reach machining
- Max. T.I.R. of 5 microns at 3xD enhances performance and tool-life
- Balanced to 15,000 RPM @ G2.5
- Unique Thrust-Ring clamping system produces exceptional holding power
Product Specifications
| Taper | CAT50 |
| Overall Diameter (Inch) | 1.03" |
| Bore ID (Inch) | 3/8" |
| Nose Diameter (Inch) | 0.61" |
| Projection Length (Inch) | 7.87" |
