Features:
- Made-in-USA quality
- Repeatable accuracy of 3 microns at 3X diameter
- Simplicity-no expensive setup machines required
- Balanced to 25,000 RPM @ G2.5

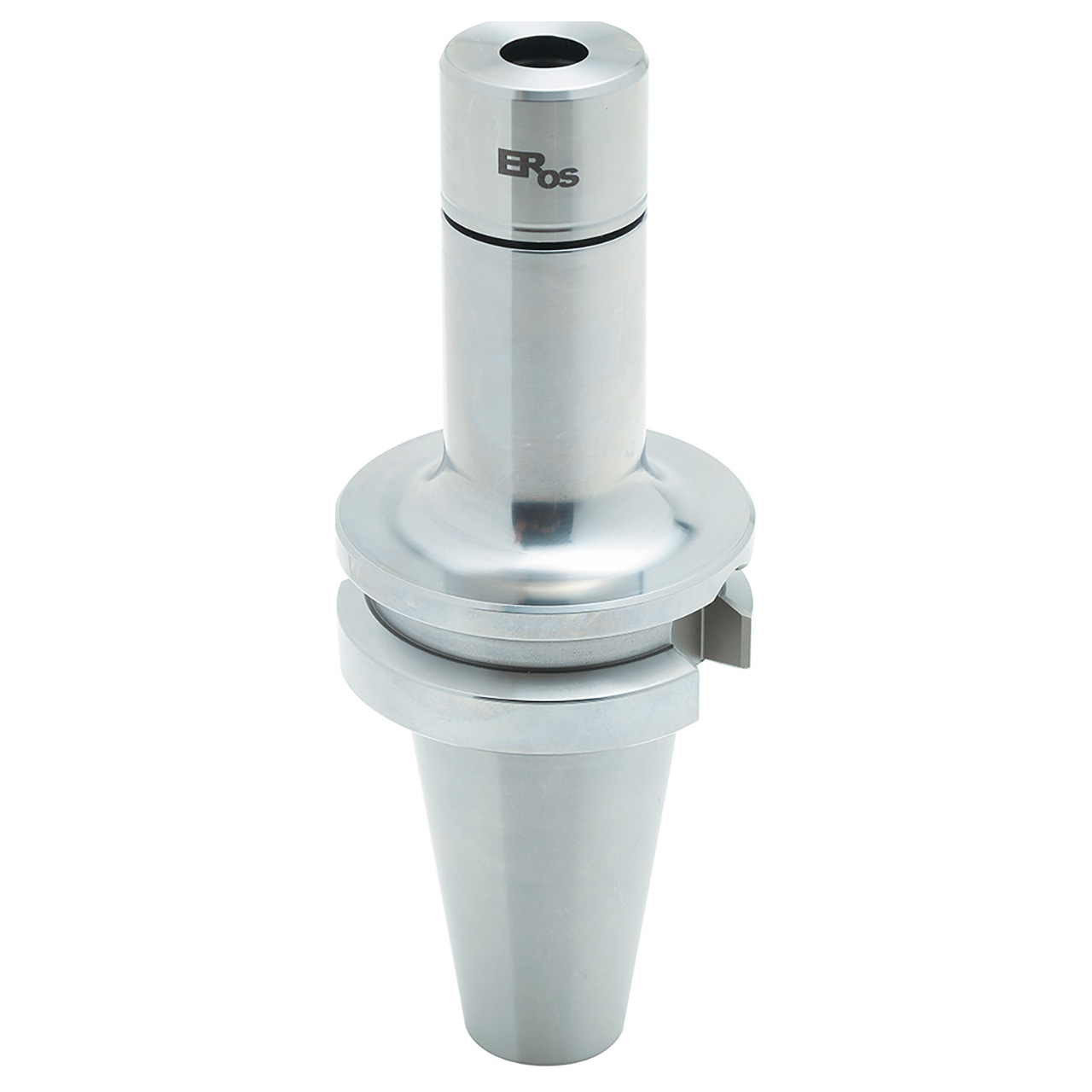

Product Specifications
| Taper | BT30 |
| Collet Series | ER20 |
| Body Diameter (Inch) | 1.25" |
| Shank Size (Inch) | 1.81" |
| Shank Length (Inch) | 1.91" |
| Overall Length (Inch) | 4.86" |
| Projection (Inch) | 2.95" |
| Nose Diameter (Inch) | 1.26" |
