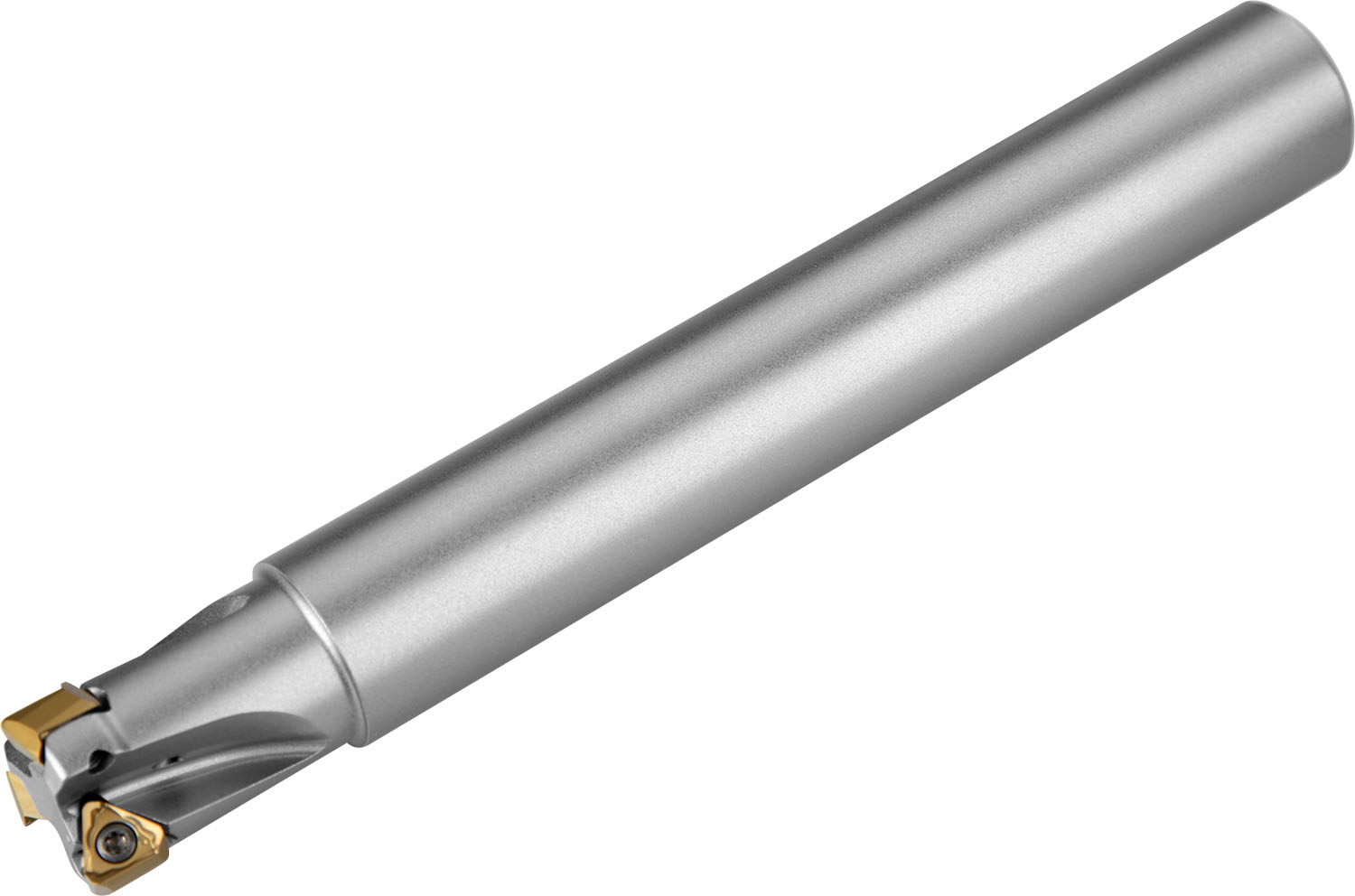

Shoulder face mill with double negative geometry which utilises 4 off TNGX 1004.. double-sided inserts, cutting diameter 1.000'' with 90 Degree approach angle and 1.000'' parallel shank according to DIN 1835A, 1.339'' functional and 6.693'' overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 7276934 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -16 |
| Radial Rake Angle | -11 |
| Max Rotational Speed | 24700 |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Cutting Diameter (mm) | 25.4 mm |
| Cutting Diameter (Inch) | 1" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 1.339 mm |
| Country of origin | Czech Republic |
