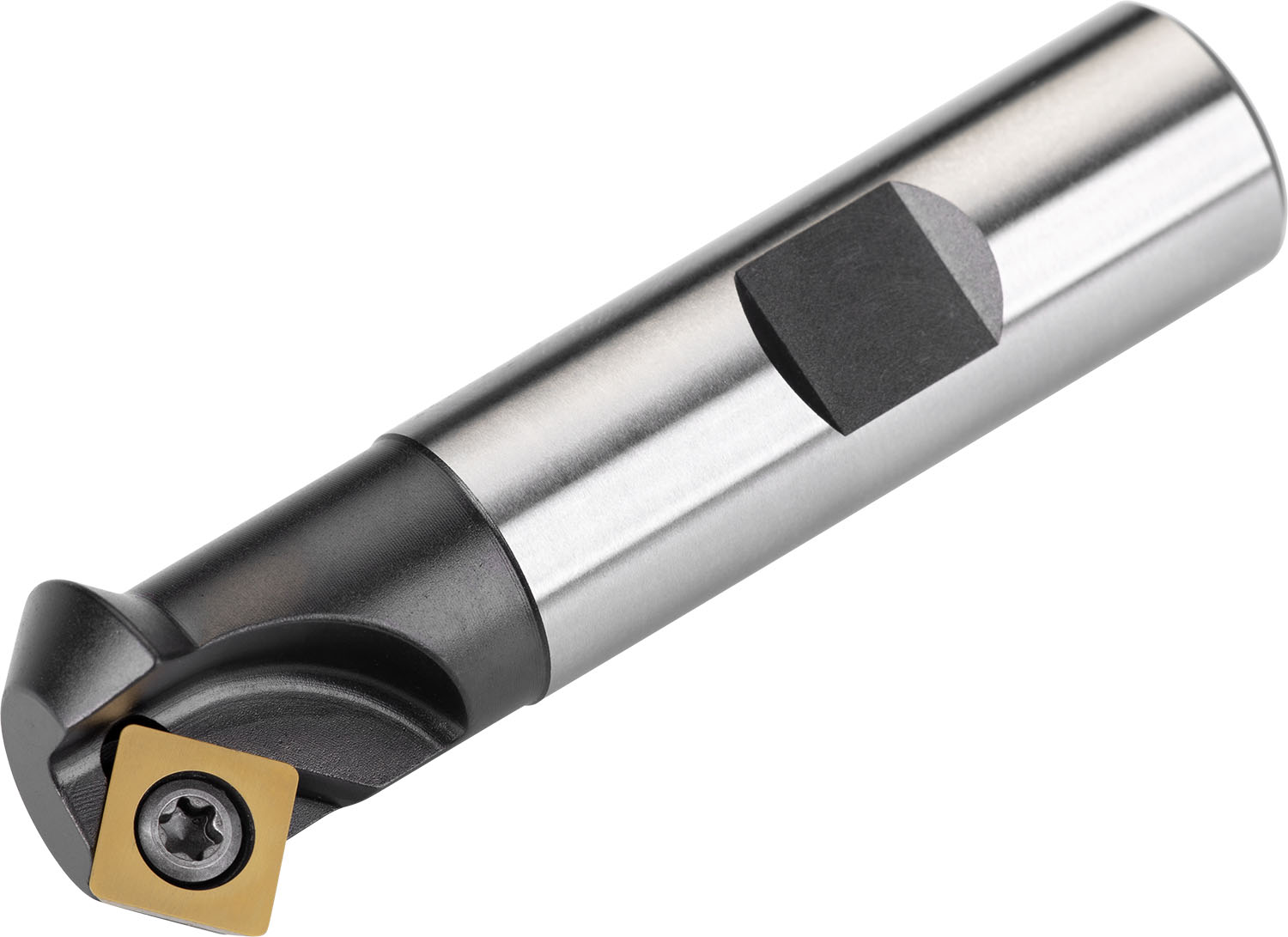

Chamfer mill with double negative geometry which utilises 1 off SDEW 0903.. or SDEX 0903.. single-sided insert, cutting diameter 10 to maximum 22 mm with 45° approach angle and 16 mm Weldon shank according to DIN 1835B, 75 mm overall length for chamfering with a maximum depth of cut of 8.0 mm.
Product Specifications
| EDP Number | 6757762 |
| Peripheral Effective Cutting Edge Count | 1 |
| Insert Index Count | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 40700 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Cutting Diameter (mm) | 10 mm |
| Max Cutting Diameter (mm) | 22 mm |
| Cutting Diameter (Inch) | 0.394" |
| Overall Length (mm) | 170 mm |
| Overall Length (Inch) | 6.693" |
| Usable Length (mm) | 27 mm |
