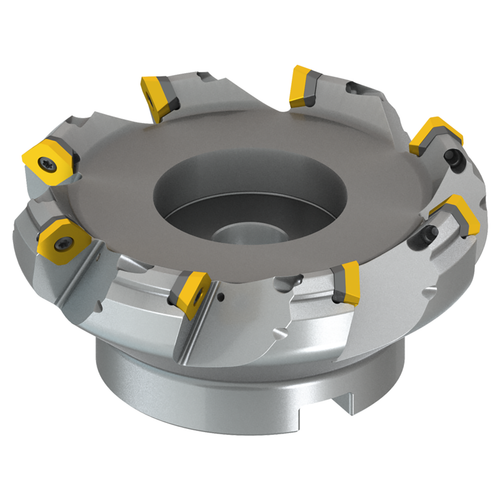

Face mill with positve/negative geometry which utilises 8 of SDET 13T3.., SDMT 13T3.. or XDET 13T3.. single-sided inserts, cutting diameter 125mm to maximum 137.8mm with 45 degree approach angle and 40mm connection bore according to DIN 8030-A, 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm.
Product Specifications
| Manufacturer Part Number | 125A08R-S45SD13F-C |
| Cutting Diameter (Decimal Inch) | 4.921" |
| Cutting Diameter (mm) | 125.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 5.425" |
| Cutting Diameter Maximum (mm) | 137.80mm |
| Connection Diameter (mm) | 40.00mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Functional Length (mm) | 63.00mm |
| Counterbore Diameter Connection Bore (mm) | 56.00mm |
| Peripheral Effective Cutting Edge Count | 8 |
| Product Type | Face Mill Cutter |
| Country of Origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Cutting Diameter (Inch):
4-59/64"
Cutting Diameter (Decimal Inch):
4.9210"
Cutting Diameter (mm):
125.00mm
