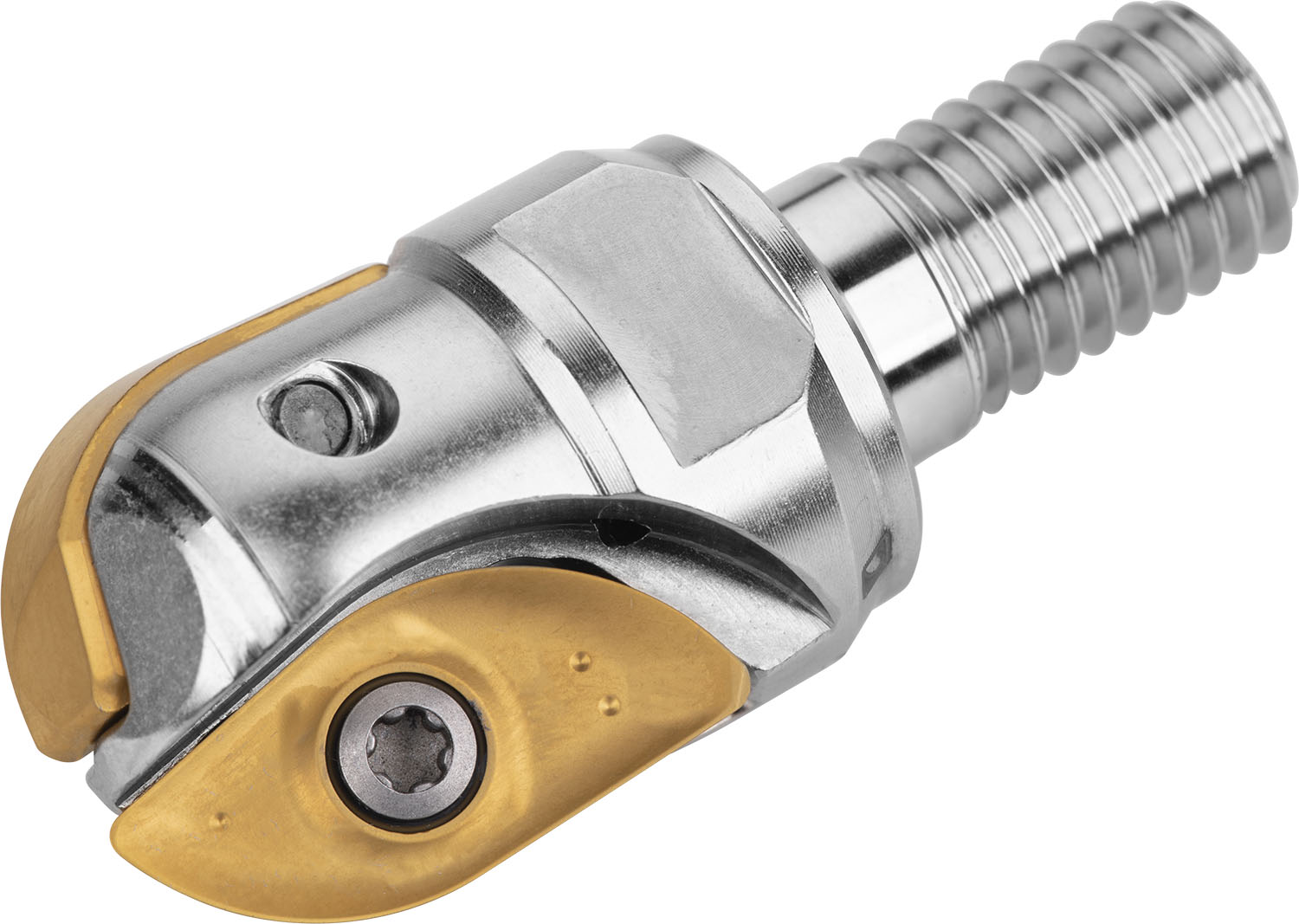

Copy end mill with double negative geometry which utilises 2 off ZP 12.. single-sided inserts, cutting diameter 12 mm with M6 threaded shank for standard modular tool-holders, 25 mm protrusion length for copy milling with a maximum depth of cut of 10,7 mm.
Product Specifications
| EDP Number | 7039766 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | 0 |
| Maximum Ramping Angle | 10.7 |
| Connection Diameter (mm) | 6.5 mm |
| Connection Diameter (Inch) | 0.256" |
| Max Cutting Diameter (mm) | 12 mm |
| Functional Length (mm) | 25 mm |
| Thread Diameter Size | M6 |
