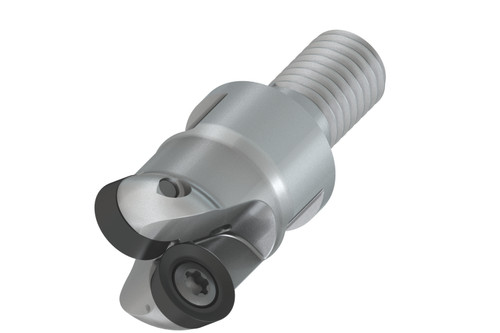

Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with M8 threaded shank for standard modular tool-holders, 28 mm functional and 46 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm.
Product Specifications
| EDP Number | 7999273 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Maximum Depth of Cut (mm) | 2 mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 1 |
| Max Rotational Speed | 44200 |
| Connection Diameter (mm) | 8.5 mm |
| Connection Diameter (Inch) | 0.335" |
| Hub Diameter (mm) | 13.5 mm |
| Cutting Diameter (mm) | 8 mm |
| Max Cutting Diameter (mm) | 15 mm |
| Cutting Diameter (Inch) | 0.315" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 28 mm |
| Thread Diameter Size | M8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
1
