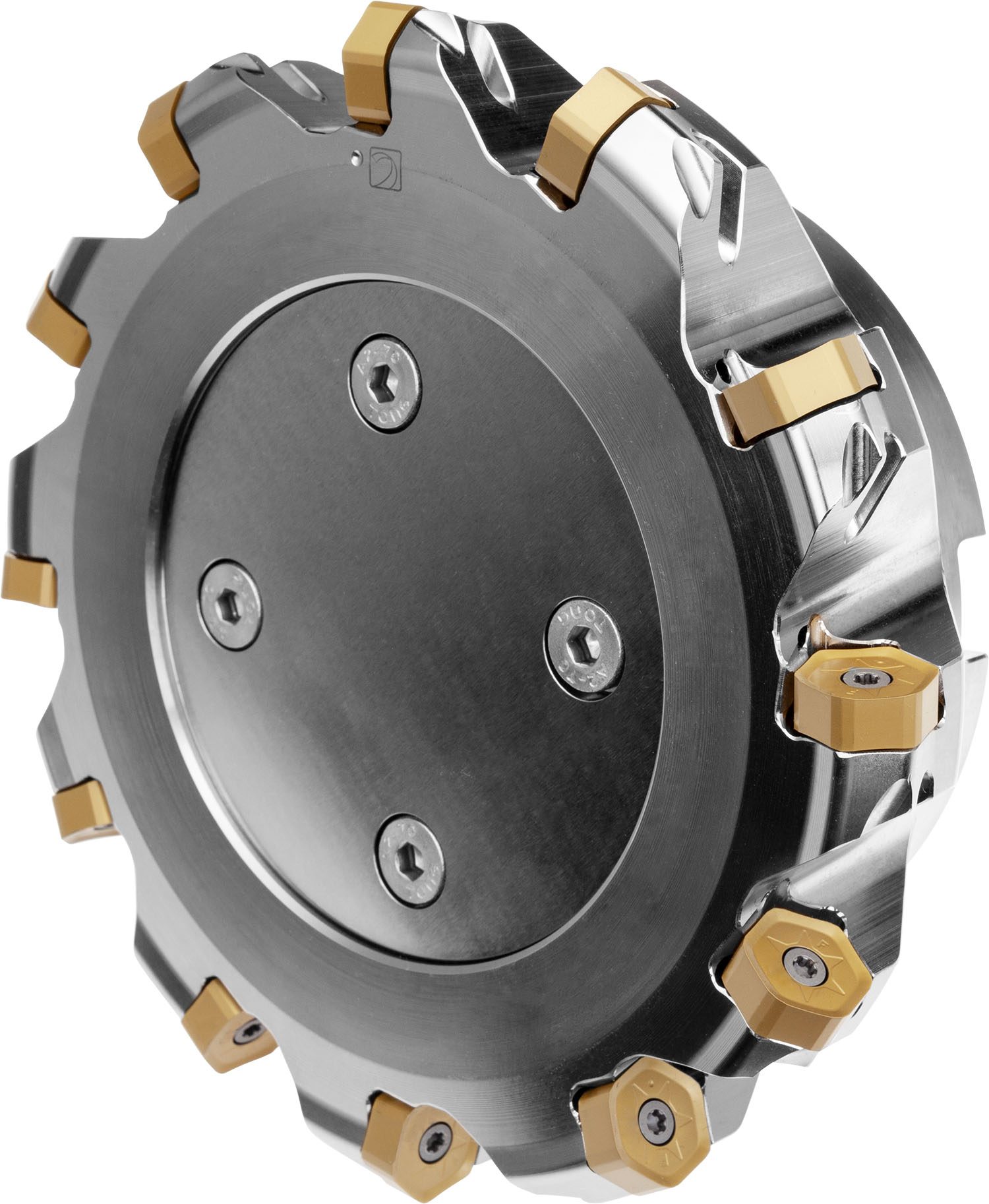

Face mill with double negative geometry which utilises 12 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 160 to maximum 171.7 mm with 45° approach angle and 40 mm connection bore according to DIN 8030-C, 63 mm protrusion length, through coolant and differential pitch for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7155952 |
| Peripheral Effective Cutting Edge Count | 12 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 12 |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 45 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 4400 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Keyway Width (mm) | 16.4 mm |
| Keyway Depth (mm) | 9 mm |
| Cutting Diameter (mm) | 160 mm |
| Max Cutting Diameter (mm) | 171.7 mm |
| Cutting Diameter (Inch) | 6.299" |
| Functional Length (mm) | 63 mm |
