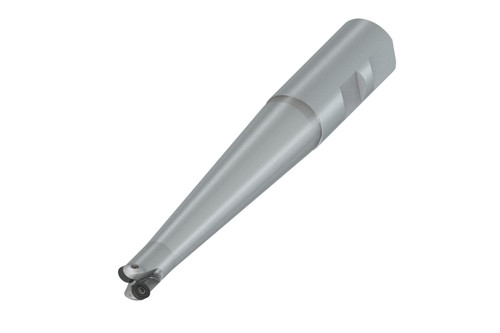

Copy face mill with double negative geometry which utilises 5 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 25 mm with M12 threaded shank for standard modular tool-holders, 28 mm functional and 50 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm.
Product Specifications
| EDP Number | 7999276 |
| Peripheral Effective Cutting Edge Count | 5 |
| Insert Index Count | 5 |
| Maximum Depth of Cut (mm) | 2 mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -2 |
| Max Rotational Speed | 34200 |
| Connection Diameter (mm) | 12.5 mm |
| Connection Diameter (Inch) | 0.492" |
| Hub Diameter (mm) | 21 mm |
| Cutting Diameter (mm) | 18 mm |
| Max Cutting Diameter (mm) | 25 mm |
| Cutting Diameter (Inch) | 0.709" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 28 mm |
| Thread Diameter Size | M12 |
