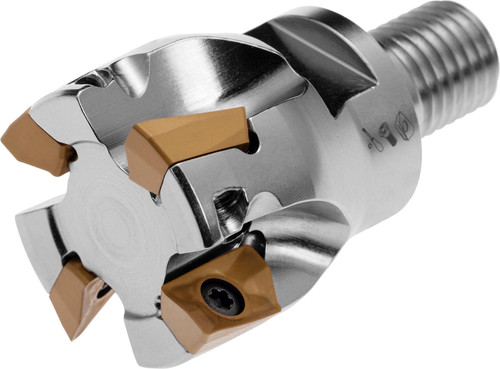

Shoulder mill with positve/negative geometry which utilises 4 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 40 mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43 mm protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0 mm.
Product Specifications
| EDP Number | 6760168 |
| Peripheral Effective Cutting Edge Count | 4 |
| Insert Index Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10.5 |
| Radial Rake Angle | -8.2 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Cutting Diameter (mm) | 40 mm |
| Cutting Diameter (Inch) | 1.575" |
| Overall Length (mm) | 110 mm |
| Overall Length (Inch) | 4.331" |
| Functional Length (mm) | 43 mm |
| Thread Diameter Size | M16 |
