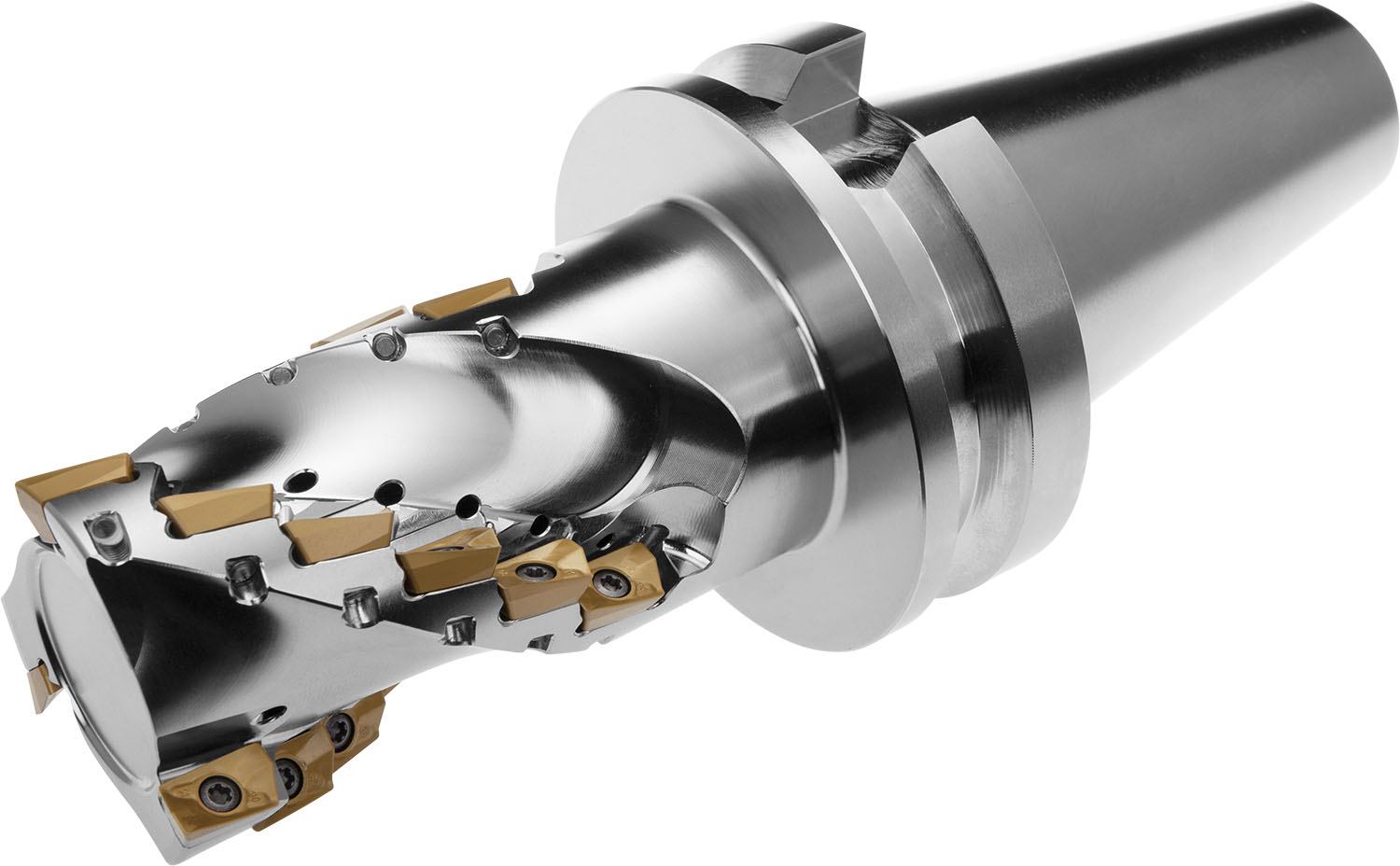

Shoulder mill with extended flute with positve/negative geometry which utilises 18 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 63 mm with 90 Degree approach angle and BT 50 taper shank according to JIS B 6339, 80 mm functional and 257 mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 80 mm.
Product Specifications
| EDP Number | 6922415 |
| Peripheral Effective Cutting Edge Count | 18 |
| Insert Index Count | 18 |
| Maximum Depth of Cut (mm) | 80 mm |
| Flute Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 12 |
| Radial Rake Angle | -6 |
| Max Rotational Speed | 11700 |
| Connection Size Code Machine Side | 50 |
| Cutting Diameter (mm) | 63 mm |
| Cutting Diameter (Inch) | 2.48" |
| Overall Length (mm) | 54 mm |
| Overall Length (Inch) | 2.126" |
| Functional Length (mm) | 155 mm |
| Country of origin | Czech Republic |
