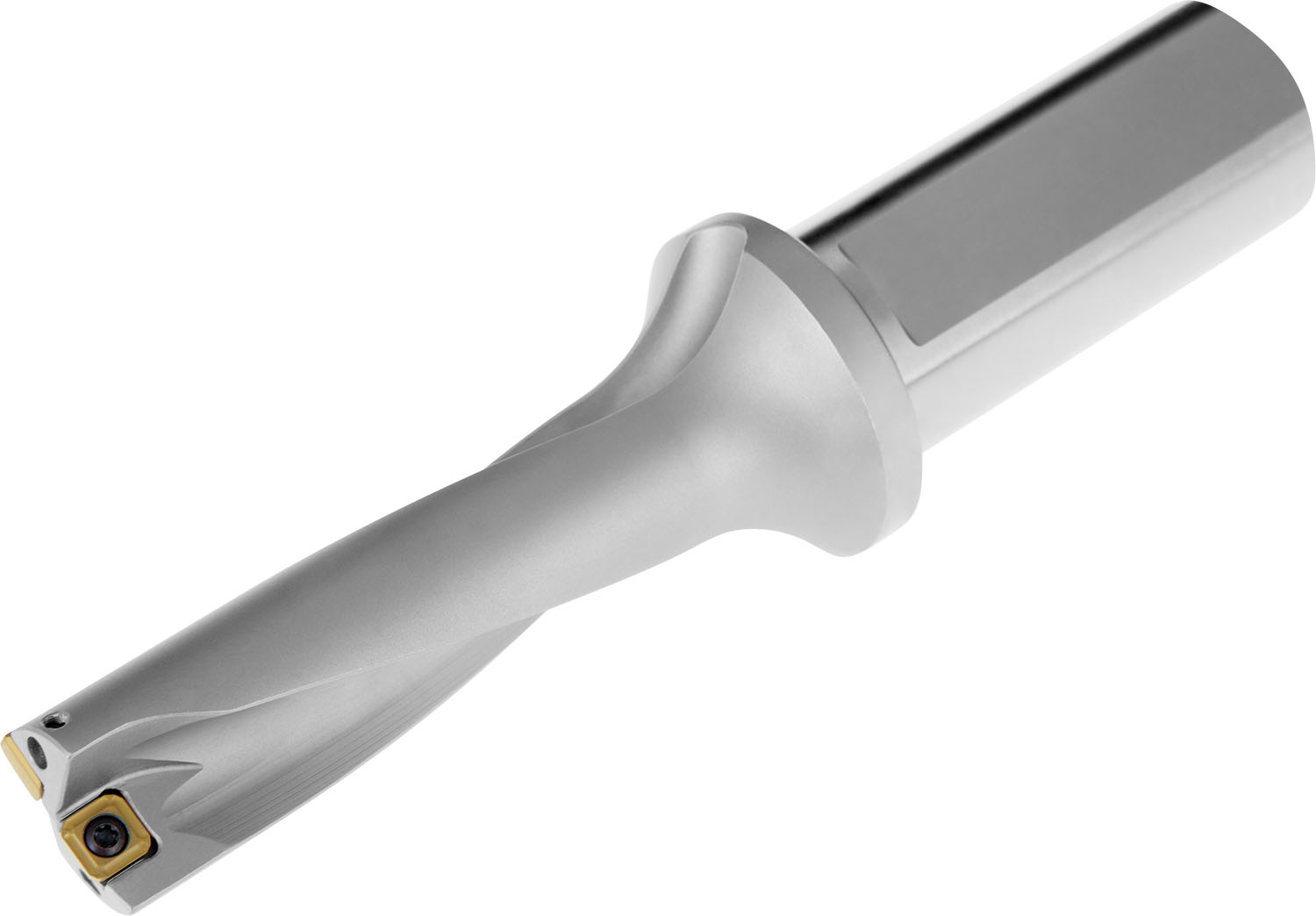

Indexable insert drill which utilises an XPET 0602.. insert in the central pocket and a SCET 0602.. insert in the peripheral pocket, cutting diameter 0.787'', with a 1.000'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D.
Product Specifications
| EDP Number | 6801127 |
| Max Depth of cut (Inch) | 2.361" |
| Min Adjustment Limit (Inch) | 0.008" |
| 0.02" | |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 20 mm |
| Cutting Diameter (Inch) | 0.787" |
| Overall Length (mm) | 142 mm |
| Overall Length (Inch) | 5.591" |
| Usable Length (Inch) | 2.559" |
| Protruding Length (Inch) | 3.346" |
| Shank Length (Inch) | 2.244" |
| Country of origin | Czech Republic |
