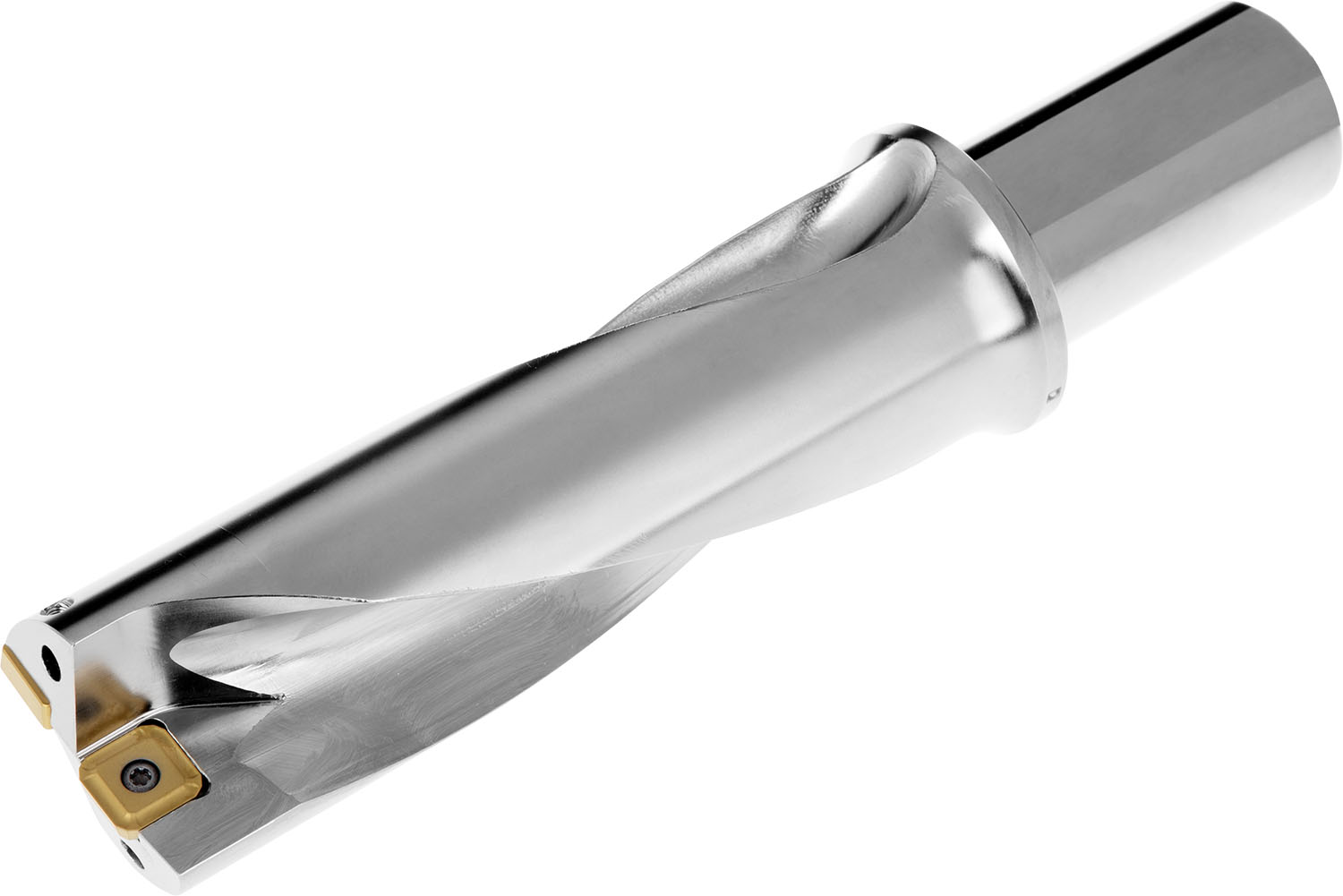

Pramet 803D-47-141-S40 | 1.85" Diameter x 141 mm Max Depth of Cut Indexable Insert Drill

$608.80
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
1
SKU:
23144959
Weight:
67.02 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Indexable insert drill which utilises an XPET 1504.. insert in the central pocket and a SCET 1505.. insert in the peripheral pocket, cutting diameter 47mm, with a 40mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D.

Product Specifications
EDP Number6758979
Max Depth of Cut (mm)141 mm
Coolant Supply Property1
Min Adjustment Limit (mm)0.5 mm
Max Adjustment Limit (mm)0.5 mm
Connection Diameter (mm)40 mm
Connection Diameter (Inch)1.575"
Connection Diameter Tolerance Machine Sideh6
Cutting Diameter (mm)47 mm
Cutting Diameter (Inch)1.85"
Overall Length (mm)237.5 mm
Overall Length (Inch)9.35"
Usable Length (mm)151 mm
Protruding Length (mm)168 mm
Shank Length (mm)70 mm
Cutting Edge Count1
