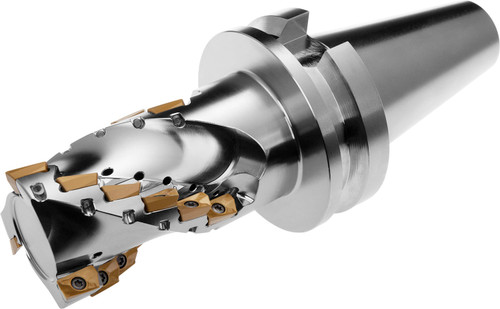

Shoulder mill with extended flute with positve/negative geometry which utilises 28 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80 mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95 mm functional and 267 mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 95 mm.
Product Specifications
| EDP Number | 6922420 |
| Peripheral Effective Cutting Edge Count | 28 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 28 |
| Maximum Depth of Cut (mm) | 95 mm |
| Flute Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 12 |
| Radial Rake Angle | -6 |
| Max Rotational Speed | 10400 |
| Connection Size Code Machine Side | 50 |
| Cutting Diameter (mm) | 80 mm |
| Cutting Diameter (Inch) | 3.15" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 165 mm |
