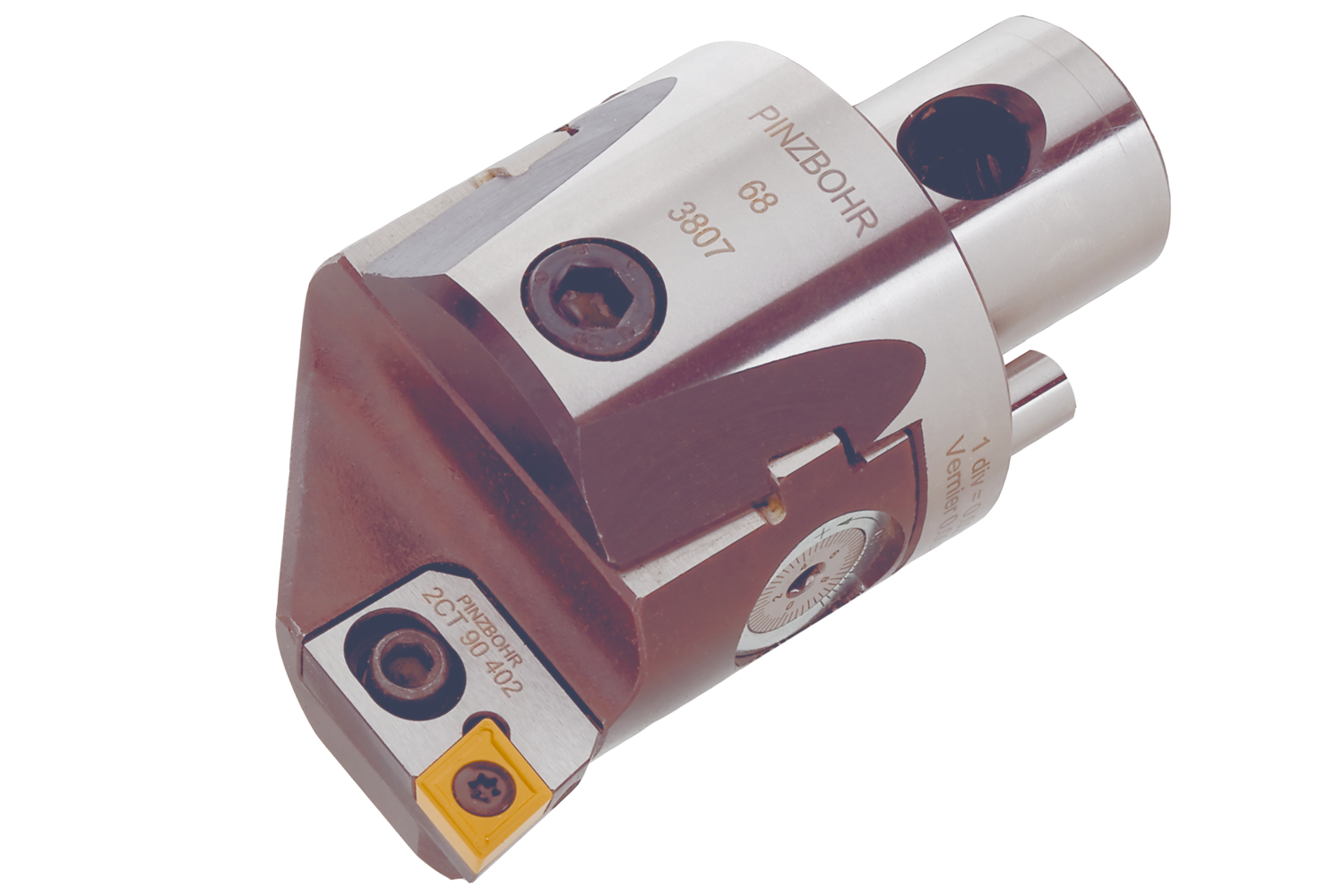

Cartridge type boring head size 68 with 90° approach angle and 2 micron adjusting accuracy for finishing within a diamerter range of 80 to 102mm, complete with a 2CT 90 300 cartridge to hold TC.. 16T3.. insert for longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760653 |
| Connection Size Code Machine Side | 68 |
| Connection Diameter (mm) | 36 mm |
| Connection Diameter (Inch) | 1.417" |
| Min Cutting Diameter (mm) | 80 mm |
| Max Cutting diameter (mm) | 102 mm |
| Functional Length (mm) | 86 mm |
| Cutting Edge Count | 1 |
| Max Body Diameter (mm) | 68 mm |
