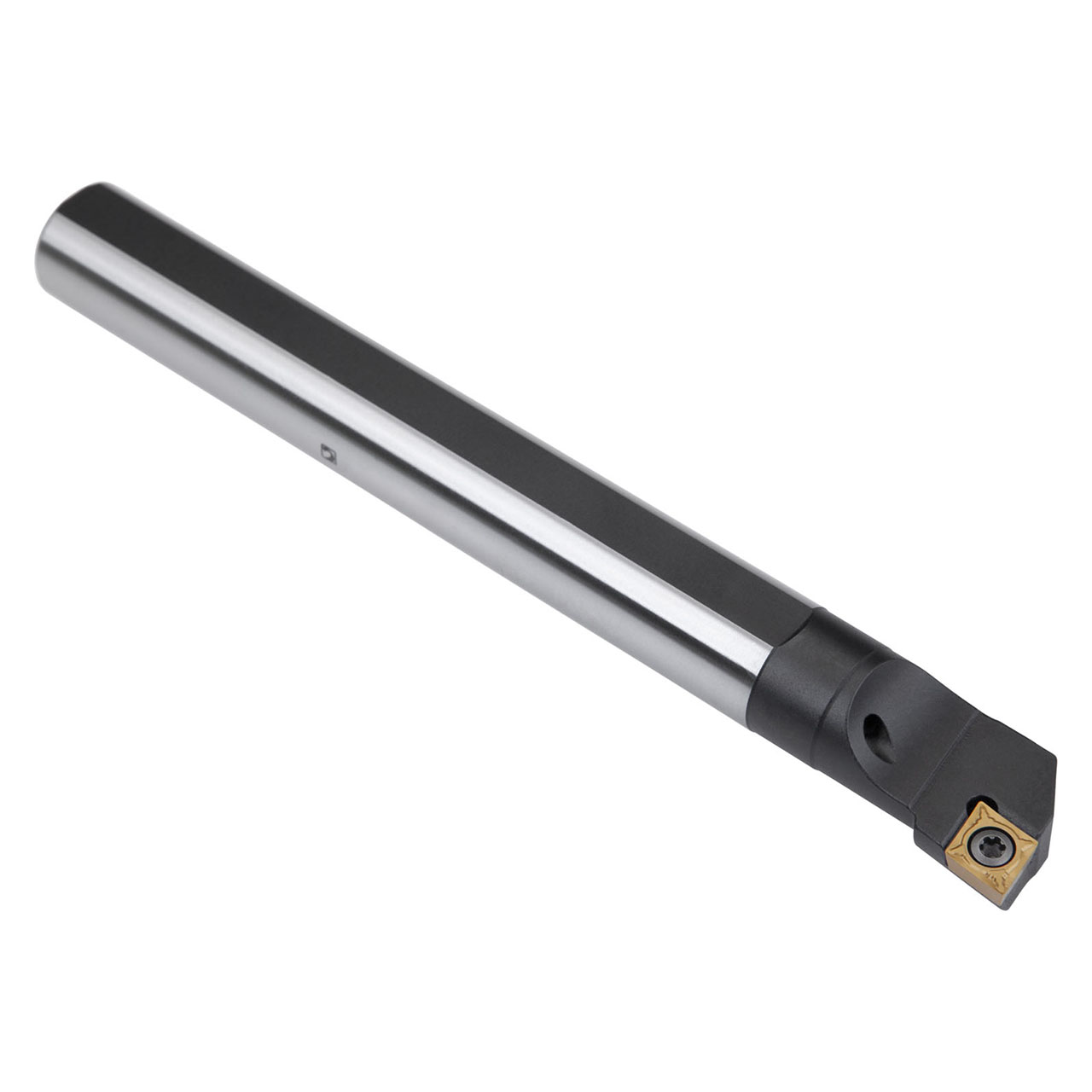

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 7.94 mm, 3.18 mm thick (ISO designation CC.. 0803.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 12 mm diameter x 150 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760897 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Coolant Entry Diameter (mm) | 5 mm |
| Inclination Angle | -5 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 12 mm |
| Connection Diameter (Inch) | 0.472" |
| Shank Height (mm) | 11 mm |
| Shank Width (mm) | 11.5 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 150 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
29/64"
Shank Width (Decimal Inch):
0.4500"
Shank Width (mm):
11.5mm
Shank Height (Inch):
7/16"
Shank Height (Decimal Inch):
0.4300"
Shank Height (mm):
11mm
