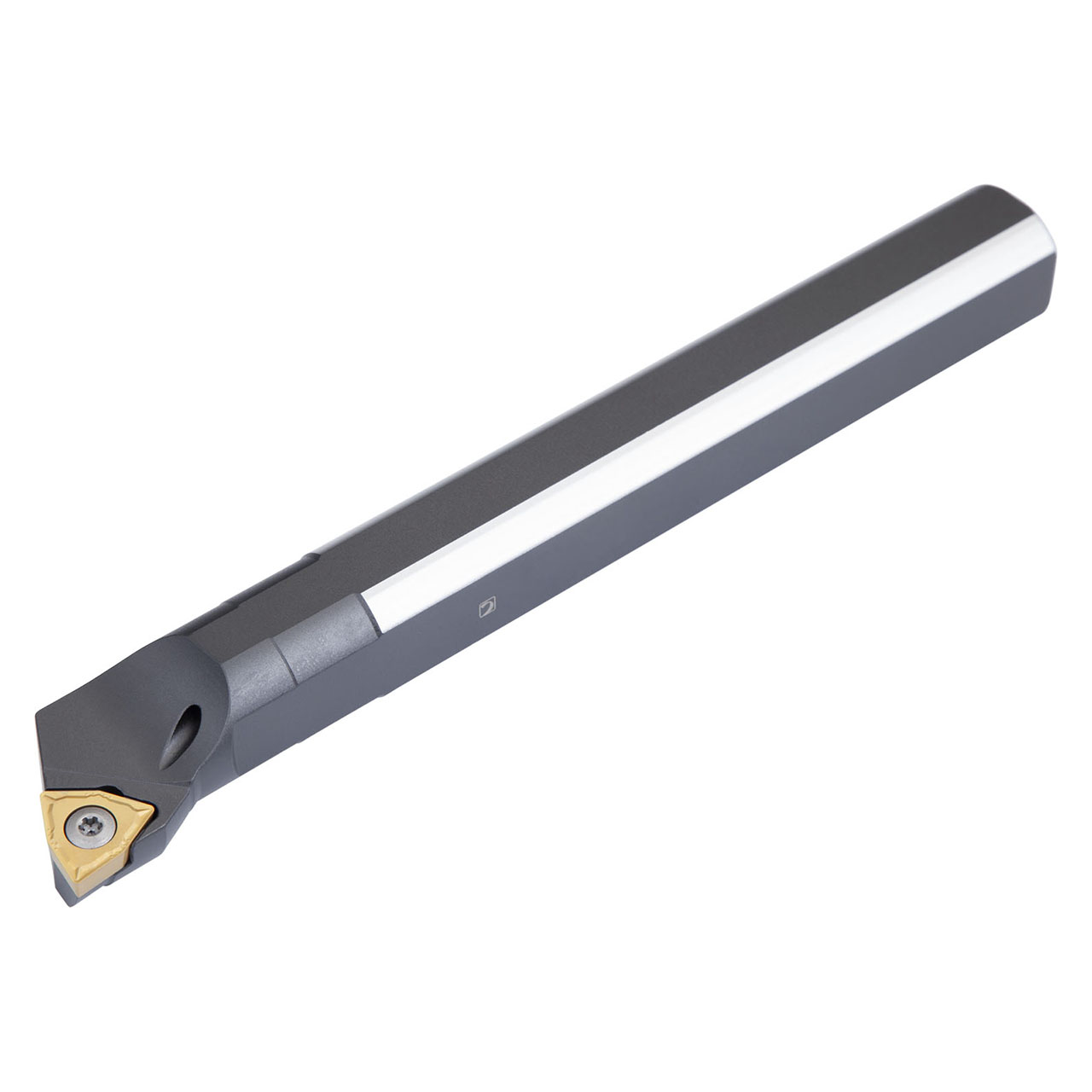

Screw clamp boring bar for holding a 80° trigon positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation WC.. 32.5. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 3/4'' diameter x 10'' long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6820322 |
| Functional Width (Inch) | 0.5" |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Shank Height (Inch) | 0.709" |
| Minimum Bore Diameter (Inch) | 0.929" |
| Functional Length (Inch) | 10" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Height (Inch):
45/64"
Shank Height (Decimal Inch):
0.7090"
Shank Height (mm):
18.01mm
