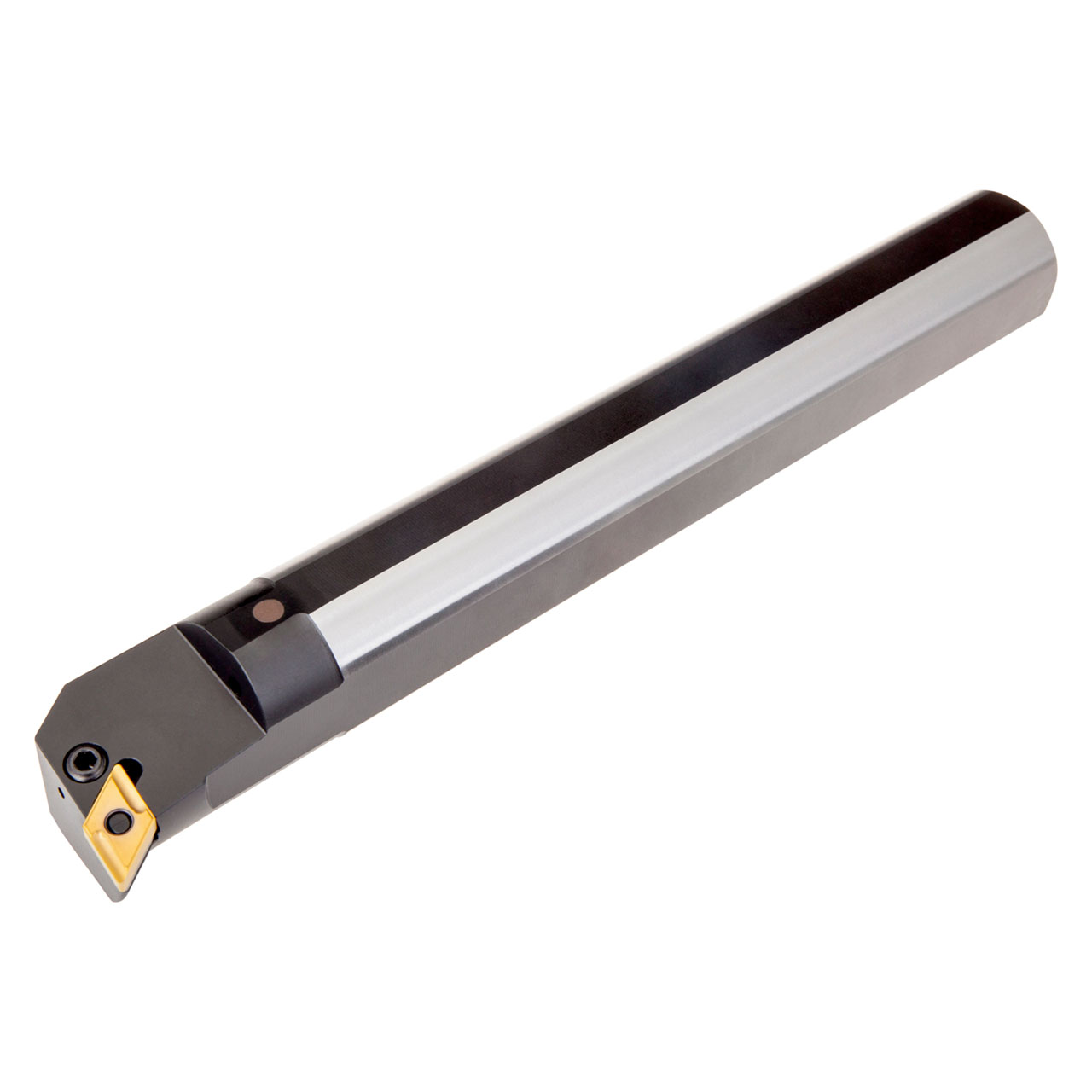

Lever lock boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation DN.. 1504.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 40 mm diameter x 300 mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6757215 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -12 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Shank Height (mm) | 38 mm |
| Shank Width (mm) | 38 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 300 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
1-1/2"
Shank Width (Decimal Inch):
1.5000"
Shank Width (mm):
38mm
Shank Height (Inch):
1-1/2"
Shank Height (Decimal Inch):
1.5000"
Shank Height (mm):
38mm
