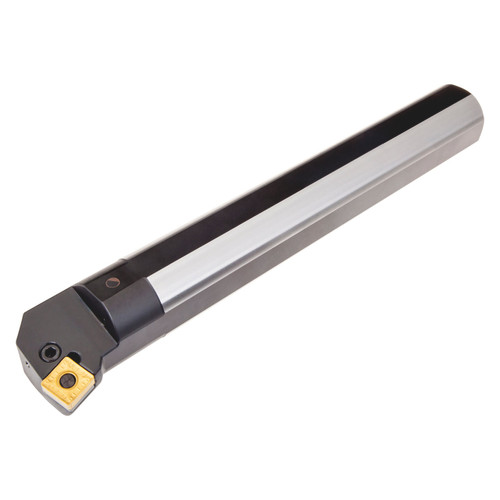

Lever lock boring bar for holding a square negative insert with an inscribed circle diameter of 15.875 mm, 6.35 mm thick (ISO designation SN.. 1506.. ), right hand 75° end cutting with off-set shank, steel with coolant hole, 40 mm diameter x 300 mm long for taper boring and longitudinal boring without shoulder.
Product Specifications
| EDP Number | 6757309 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -12 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Shank Height (mm) | 38 mm |
| Shank Width (mm) | 38 mm |
| Minimum Bore Diameter (mm) | 8 mm |
| Functional Length (mm) | 300 mm |
| Hand (Cutting Direction) | Right |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
1-1/2"
Shank Width (Decimal Inch):
1.5000"
Shank Width (mm):
38mm
Shank Height (Inch):
1-1/2"
Shank Height (Decimal Inch):
1.5000"
Shank Height (mm):
38mm
