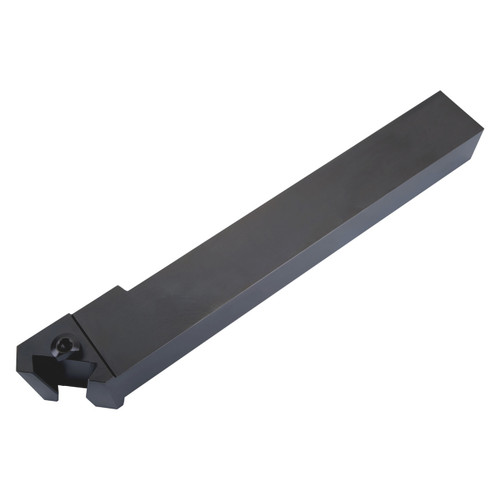

Modular system tool holder for holding a right hand KHP/KHS turning tool cartridge, shank size 40 mm x 50 mm, 400 mm long for heavy duty machining.
Product Specifications
| EDP Number | 6757384 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 40 mm |
| Shank Width (mm) | 50 mm |
| Overall Length (mm) | 425 mm |
| Overall Length (Inch) | 16.732" |
| Functional Length (mm) | 400 mm |
| Head Length (mm) | 100 mm |
| Hand (Cutting Direction) | Right |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
1-31/32"
Shank Width (Decimal Inch):
1.9700"
Shank Width (mm):
50mm
Shank Height (Inch):
1-37/64"
Shank Height (Decimal Inch):
1.5700"
Shank Height (mm):
40mm
