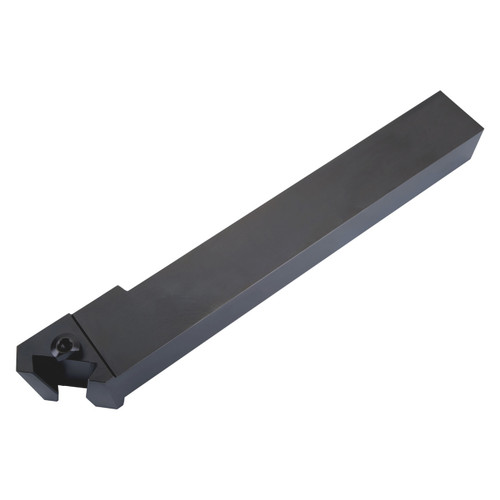

Modular system tool holder for holding a right hand KHP/KHS turning tool cartridge, shank size 60 mm x 80 mm, 450 mm long for heavy duty machining.
Product Specifications
| EDP Number | 6758501 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 60 mm |
| Shank Width (mm) | 80 mm |
| Overall Length (mm) | 485 mm |
| Overall Length (Inch) | 19.094" |
| Functional Length (mm) | 450 mm |
| Head Length (mm) | 90 mm |
| Hand (Cutting Direction) | Right |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
35/32"
Shank Width (Decimal Inch):
3.1500"
Shank Width (mm):
80mm
Shank Height (Inch):
2-23/64"
Shank Height (Decimal Inch):
2.3600"
Shank Height (mm):
60mm
interval quantity:
1
