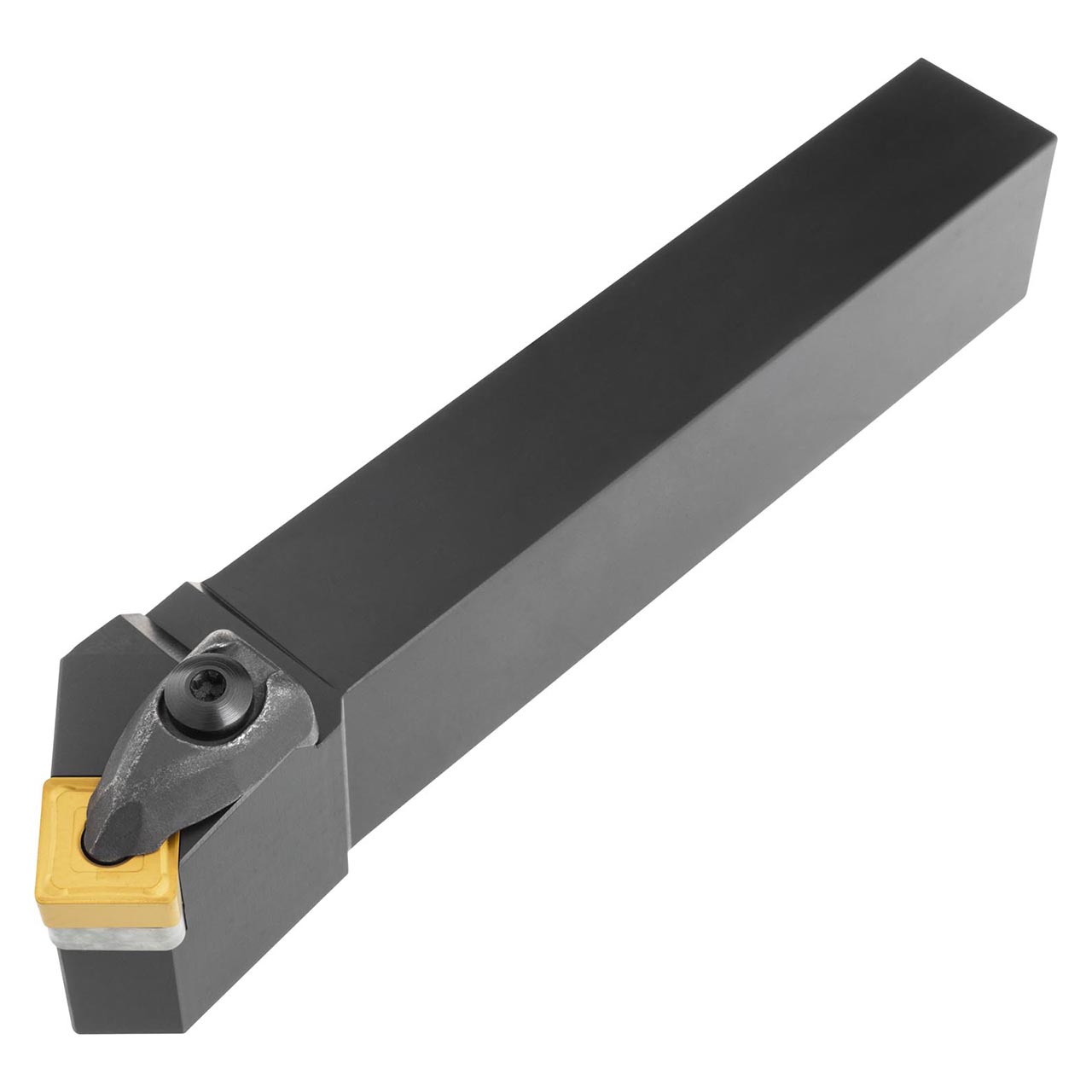

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation SN.. 43. ), right hand 45° side cutting with off-set shank, 1'' tool height x 1'' width x 6'' long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6788605 |
| Functional Height (Inch) | 1" |
| Functional Width (Inch) | 1.25" |
| Orthogonal Rake Angle | -8 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Overall Length (mm) | 161 mm |
| Overall Length (Inch) | 6.327" |
| Functional Length (Inch) | 6" |
| Head Length (Inch) | 1.172" |
| Clamping Type Code | System D |
| Functional Width Secondary (Inch) | 0.925" |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-8
Shank Width (Inch):
1"
Shank Width (Decimal Inch):
1.0000"
Shank Width (mm):
25.4mm
