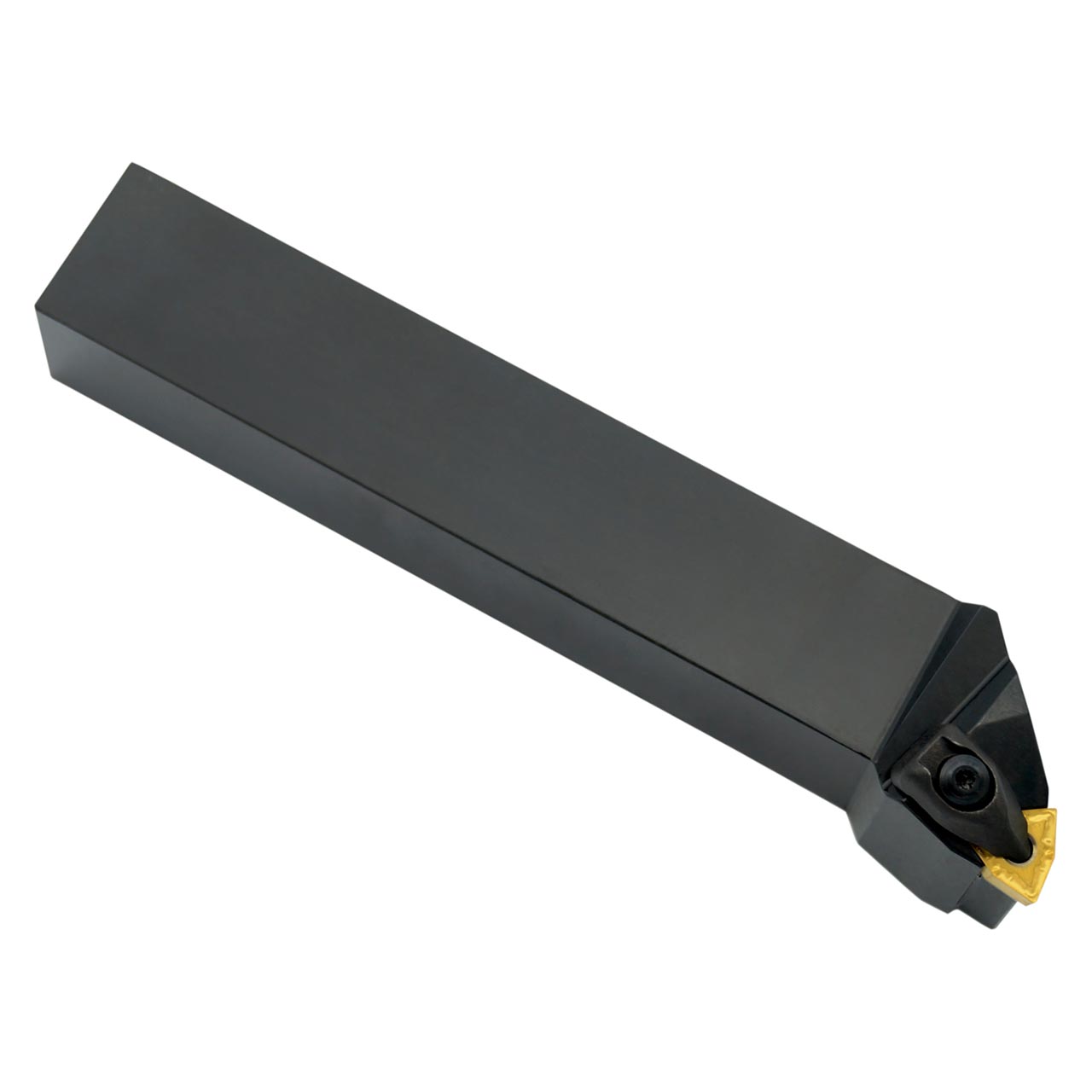

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation WN.. 33. ), left hand 95° side and end cutting with off-set shank, 5/8'' tool height x 5/8'' width x 4.1/2'' long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6788623 |
| Functional Height (Inch) | 0.625" |
| Functional Width (Inch) | 0.875" |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 0.625" |
| Shank Width (Inch) | |
| Functional Length (Inch) | 4.5" |
| Head Length (Inch) | 1.07" |
| Clamping Type Code | System D |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
5/8"
Shank Width (Decimal Inch):
0.6250"
Shank Width (mm):
15.88mm
Shank Height (Inch):
5/8"
Shank Height (Decimal Inch):
0.6250"
Shank Height (mm):
15.88mm
