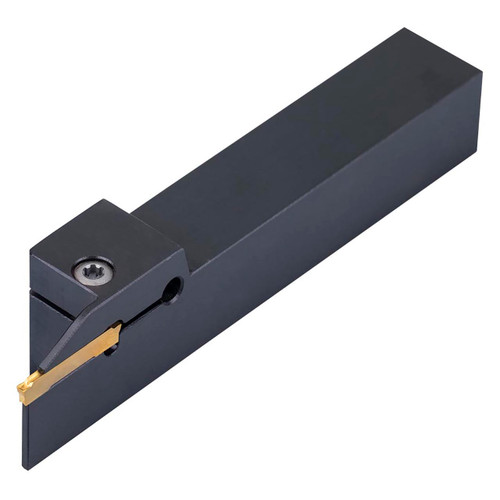

Top clamp grooving tool for holding a 0,984" long double ended insert with 0.078-0.098" cutting width (designation GL2-DÂ… ), right handed with insert parallel to the shank for a maximum parting diameter of 3.150", shank height 3/4", width 3/4" and tool length 5" for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off.
Product Specifications
| EDP Number | 7804078 |
| Functional Height (Inch) | 0.75" |
| Cutting Width (Inch) | 0.079" |
| Max Cutting Depth (Inch) | 0.79" |
| Max Work Piece Parting Diameter (Inch) | 3.15" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 0.75" |
| Shank Width (Inch) | |
| Functional Length (Inch) | 5" |
| Clamping Type Code | System G |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
interval quantity:
1
