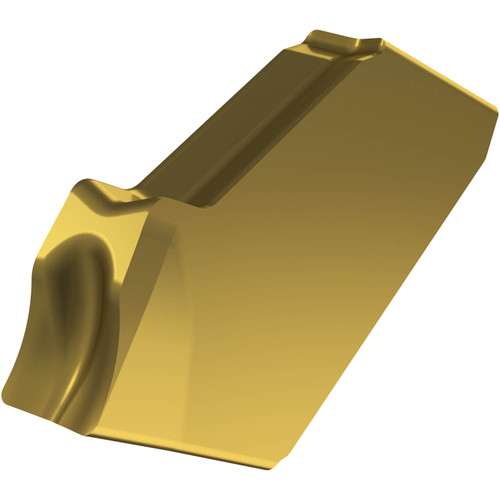

Single ended parting and grooving insert, with a 6.35 mm cutting width and 0.2 mm corner radii, an accuracy according to tolerance class-M and chip-breaker F2 with rounded cutting edges with facet, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with PRAMET XL.F(NRL) 6.35 parting and grooving tools.
Product Specifications
| EDP Number | 6754352 |
| Cutting Width (Inch) | 0.25" |
| Cutting Width (mm) | 6.35 mm |
| Cutting Width Lower Tolerance (mm) | -0.04 mm |
| Cutting Width Upper Tolerance (mm) | 0.04 mm |
| Coating Property | 1 |
| Insert Body Width (mm) | 5.8 mm |
| Corner Radius (mm) | 0.2 mm |
| Corner Radius (Inch) | 0.008" |
| Coating Process | PVD |
| Coating | T8330 |
| Surface Color | Gold |
| Cutting Width Lower Tolerance (Inch) | -0.002" |
| Cutting Width Upper Tolerance (Inch) | 0.002" |
| Chipbreaker Manufacturer's Designation | F2 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
1/4"
Cutting Width (Decimal Inch):
0.2500"
Cutting Width (mm):
6.35mm
Finish/Coating:
T8330
interval quantity:
10
