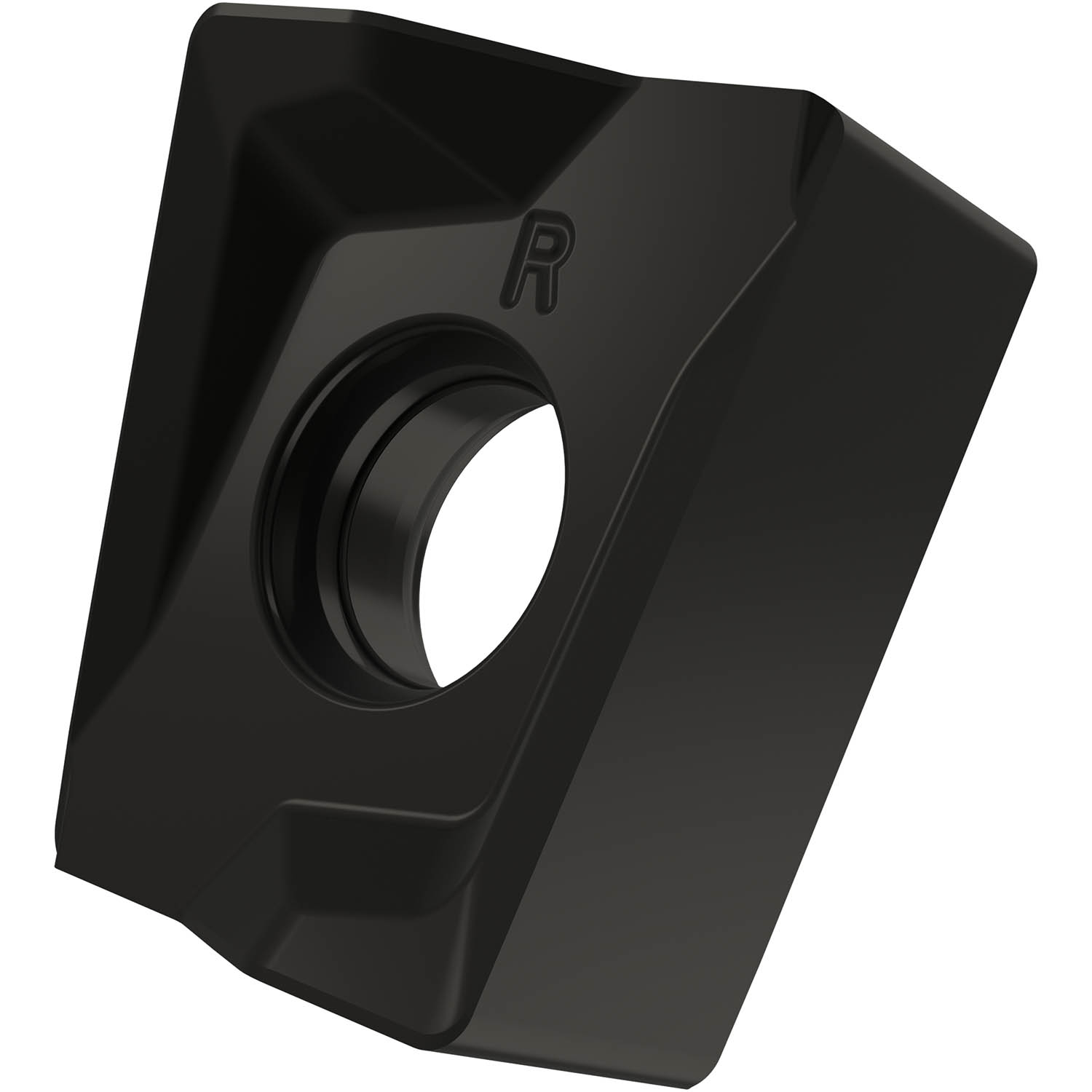

Double-sided milling insert LNMU 1607 with chip-breakers, rectangular for a maximum depth of cut of 13.0 mm, with 1.6 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with shoulder mills SLN16.
Product Specifications
| EDP Number | 6941428 |
| Maximum Depth of Cut (mm) | 13 mm |
| Max Depth of Cut (Inch) | 0.512" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.7 mm |
| Fixing Hole Diameter (Inch) | 0.224" |
| Cutting Edge Length (mm) | 16.6 mm |
| Cutting Edge Length (Inch) | 0.654" |
| Insert Width (mm) | 13.2 mm |
| Insert Width (Inch) | 0.52" |
| Insert Thickness (mm) | 7.5 mm |
| Insert Thickness (Inch) | 0.295" |
| Corner Radius (mm) | 1.6 mm |
| Corner Radius (Inch) | 0.063" |
| Coating Process | MT-CVD |
| Coating | M9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
