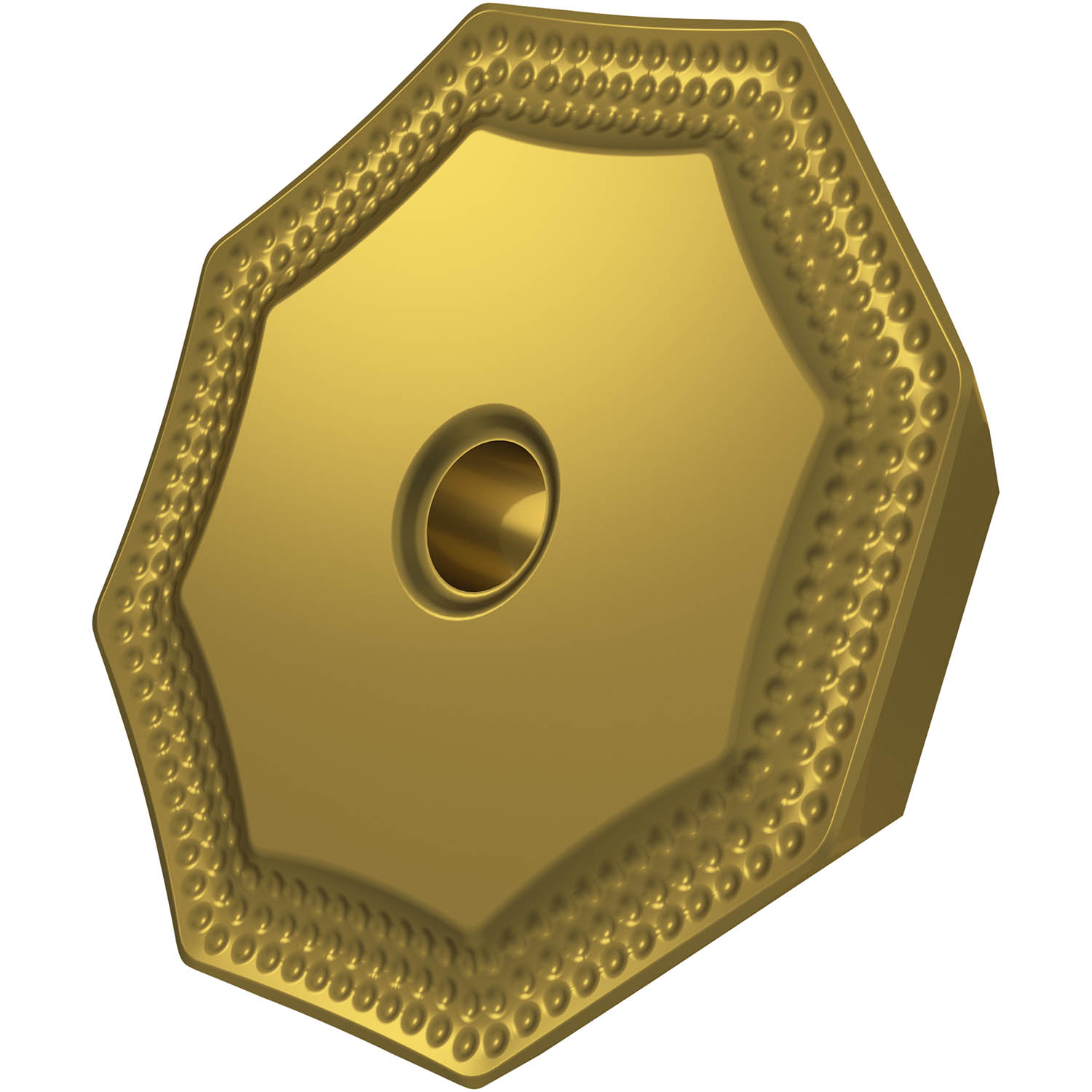

Single-sided milling insert OFKR 0704 with chip-breakers, octagonal for a maximum depth of cut of 12.0 mm, with an indexing accuracy according to ISO-tolerance class-K and M geometry, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel.
Product Specifications
| EDP Number | 6800838 |
| Maximum Depth of Cut (mm) | 12 mm |
| Max Depth of Cut (Inch) | 0.472" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.65 mm |
| Fixing Hole Diameter (Inch) | 0.104" |
| Inscribed Circle Diameter (mm) | 17.845 mm |
| Inscribed Circle Diameter (Inch) | 0.703" |
| Insert Thickness (mm) | 4.56 mm |
| Insert Thickness (Inch) | 0.18" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
