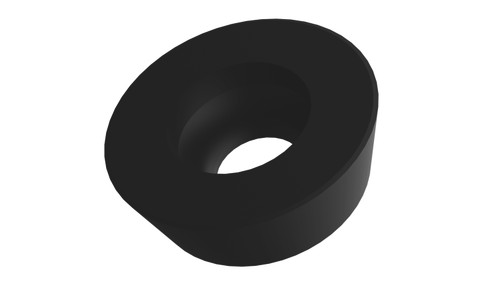

Single-sided milling insert RDHX 1604, round for a maximum depth of cut of 4.0 mm, with an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M9325 MT-CVD coated WC-Co carbide for machining with copy face mills SRD16.
Product Specifications
| EDP Number | 7455502 |
| Maximum Depth of Cut (mm) | 4 mm |
| Max Depth of Cut (Inch) | 0.157" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.2 mm |
| Fixing Hole Diameter (Inch) | 0.205" |
| Insert Diameter (mm) | 16 mm |
| Insert Diameter (Inch) | 0.63" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | MT-CVD |
| Coating | M9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
