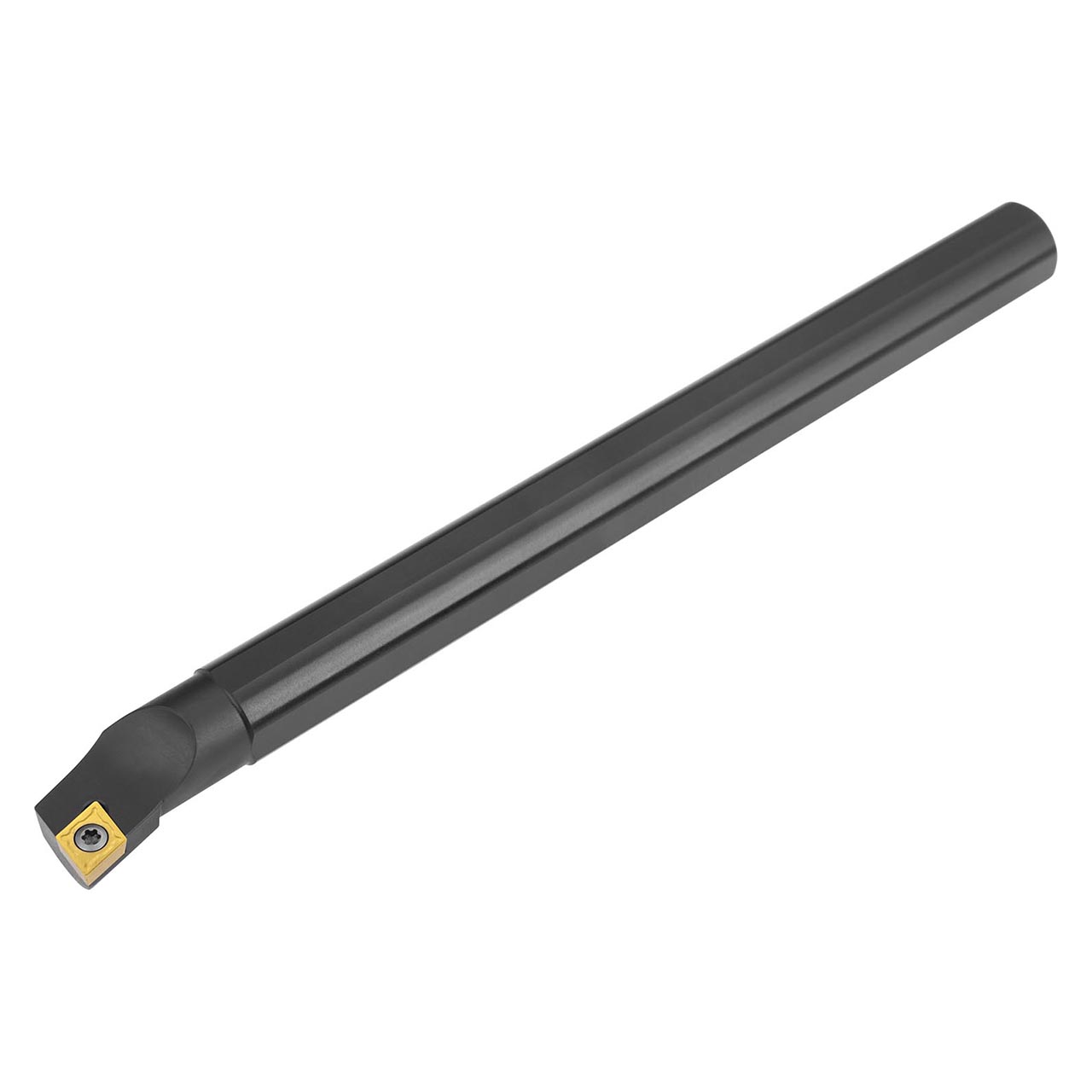

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 7.94 mm, 3.18 mm thick (ISO designation EC.. 0803.. ), right hand 93° end cutting with off-set shank, steel without coolant hole, 25 mm diameter x 300 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760461 |
| Functional Height (mm) | 11.5 mm |
| Functional Width (mm) | |
| Inclination Angle | -4 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Shank Height (mm) | 23 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 300 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Height (Inch):
29/32"
Shank Height (Decimal Inch):
0.9100"
Shank Height (mm):
23mm
interval quantity:
1
