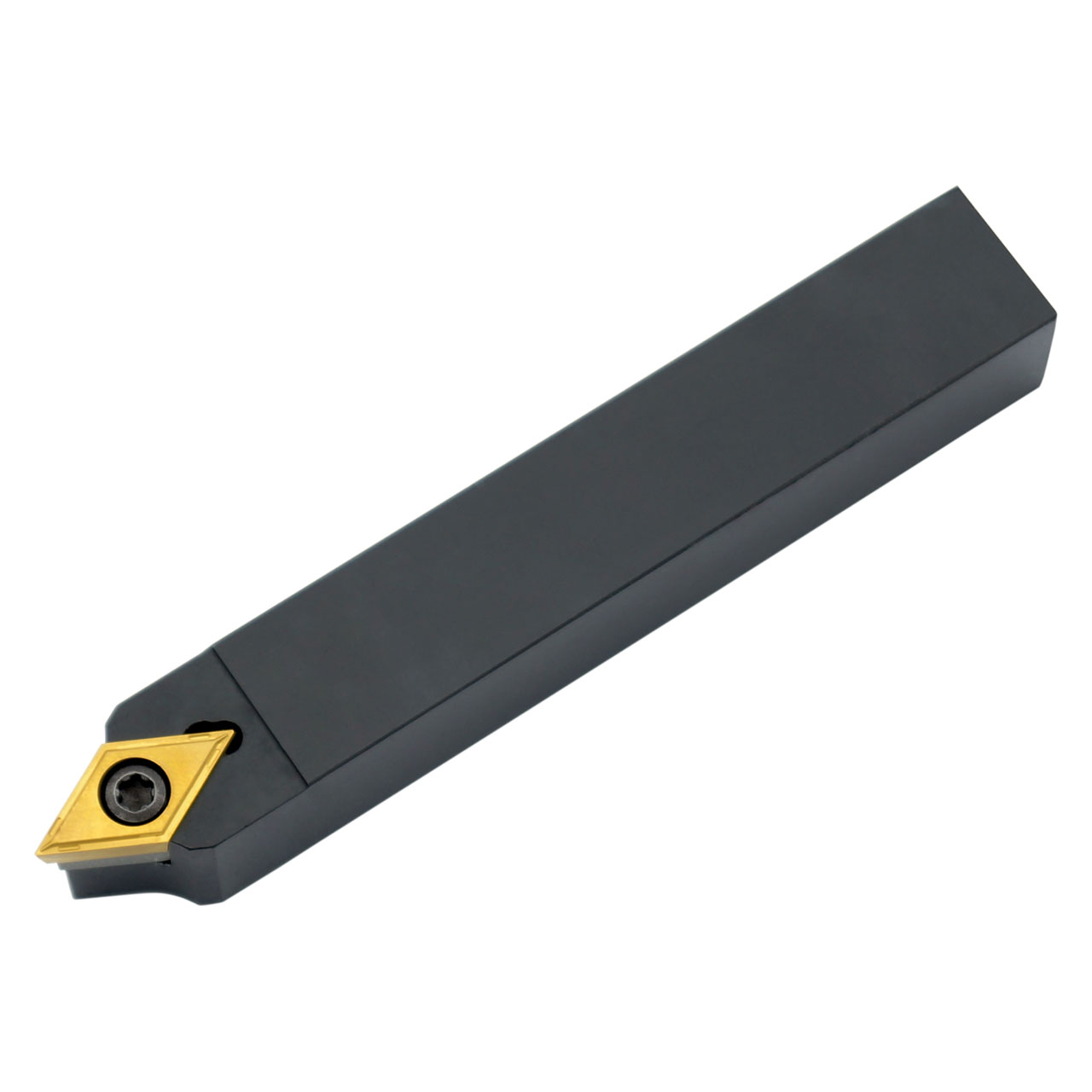

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation DC.. 32.5. ), neutral hand 62.5°, left and right side cutting, 5/8'' tool height x 5/8'' width x 4'' long for single and multi-directional copy turning.
Product Specifications
| EDP Number | 6788671 |
| Functional Height (Inch) | 0.625" |
| Functional Width (Inch) | 0.341" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Functional Length (Inch) | 4" |
| Head Length (Inch) | 0.862" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
5/8"
Shank Width (Decimal Inch):
0.6250"
Shank Width (mm):
15.88mm
interval quantity:
1
