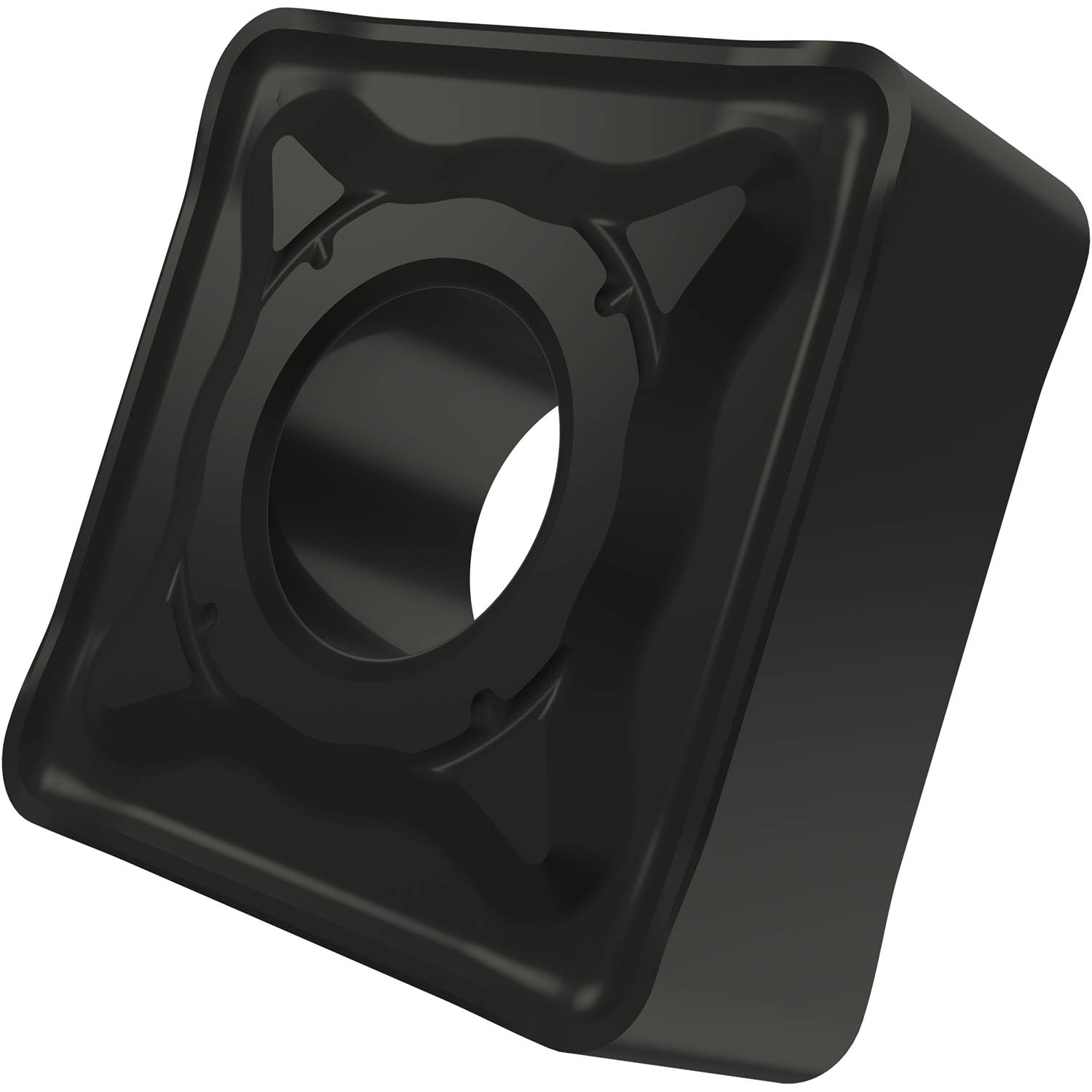

Pramet SNMG 543-NRM:T7325 | 0.625" Circle Diameter x 0.25" Thickness Turning Insert

$14.69
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
5/8"
Length (Decimal Inch):
0.6250"
Length (mm):
15.875mm
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.2mm
interval quantity:
10
SKU:
23148955
Weight:
0.65 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Double-sided negative turning insert, square with inscribed circle diameter of 15.875 mm, 6.35 mm thick, 1.2 mm nose radius and indexing accuracy according to ISO-tolerance class-M, chip-breaker NRM, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for medium to heavy machining of stainless-steels.

Product Specifications
EDP Number7273533
Max Depth of Cut (mm)8 mm
Max Depth of cut (Inch)0.315"
Coating Property1
Maximum Axial Groove Outside Diameter (mm)
Fixing Hole Diameter (mm)6.35 mm
Fixing Hole Diameter (Inch)0.25"
Cutting Edge Length (mm)15.875 mm
Cutting Edge Length (Inch)0.625"
Inscribed Circle Diameter (mm)15.875 mm
Inscribed Circle Diameter (Inch)0.625"
Insert Thickness (mm)6.35 mm
Insert Thickness (Inch)0.25"
Corner Radius (mm)1.2 mm
Corner Radius (Inch)0.047"
Coating ProcessMT-CVD
CoatingT7325
Surface ColorBlack
Min Depth of Cut (mm)1.2 mm
Min Depth of Cut (Inch)0.047"
Chipbreaker Manufacturer's DesignationNRM
