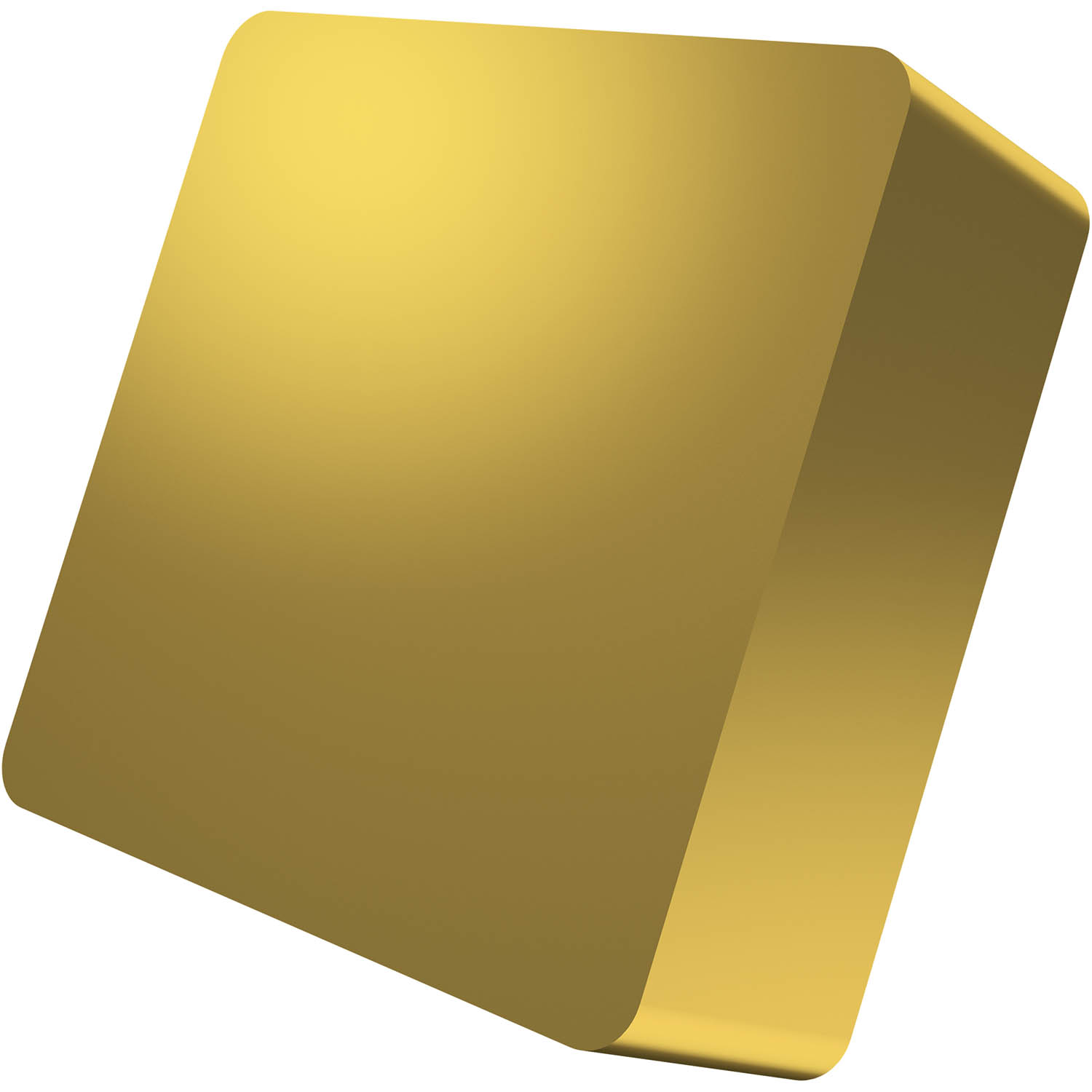

Double-sided milling insert SNUN 1504 with a plane rake surface, square for a maximum depth of cut of 13.5 mm, with 1.2 mm corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron.
Product Specifications
| EDP Number | 7451028 |
| Maximum Depth of Cut (mm) | 13.5 mm |
| Max Depth of Cut (Inch) | 0.531" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 15.875 mm |
| Cutting Edge Length (Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.875 mm |
| Inscribed Circle Diameter (Inch) | 0.625" |
| M-Dimension (mm) | 2.8 mm |
| M-Dimension (Inch) | 0.11" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1.2 mm |
| Min Depth of Cut (Inch) | 0.047" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
