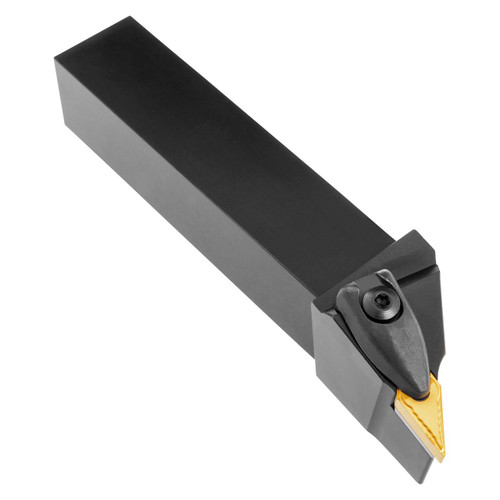

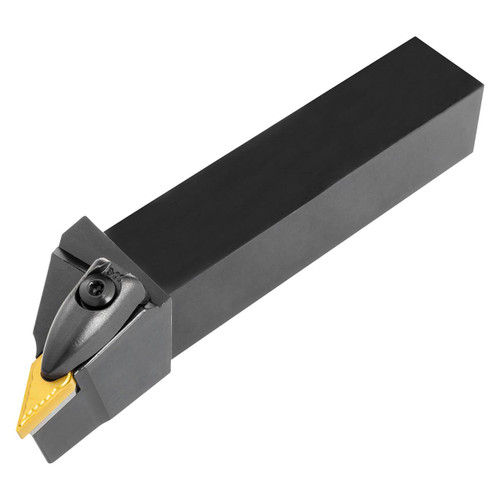

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation VB.. 33. ), neutral hand 72°30' side cutting with straight shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6788700 |
| Functional Height (Inch) | 1.25" |
| Functional Width (Inch) | 0.645" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 1.25" |
| Shank Width (Inch) | |
| Functional Length (Inch) | 6" |
| Head Length (Inch) | 1.24" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
1-1/4"
Shank Width (Decimal Inch):
1.2500"
Shank Width (mm):
31.75mm
Shank Height (Inch):
1-1/4"
Shank Height (Decimal Inch):
1.2500"
Shank Height (mm):
31.75mm
interval quantity:
1
