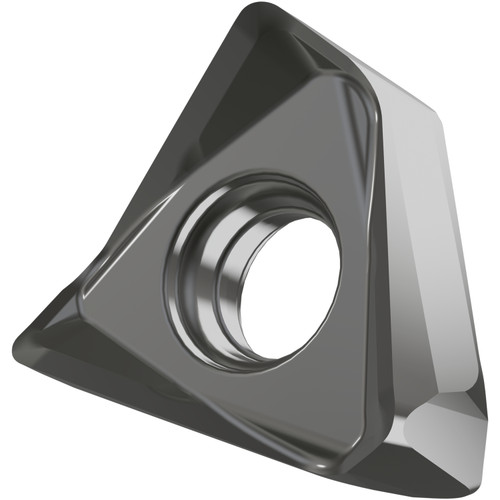

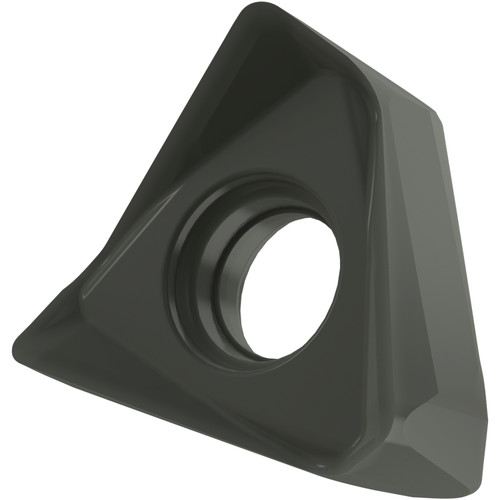

Double-sided milling insert TNGX 1606, triangular for a maximum depth of cut of 10.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder face mills STN16.
Product Specifications
| EDP Number | 8020828 |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Cutting Edge Length (mm) | 16.5 mm |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Insert Thickness (mm) | 6.58 mm |
| Corner Radius (mm) | 0.8 mm |
| Coating | HF7 |
| Surface Color | Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
