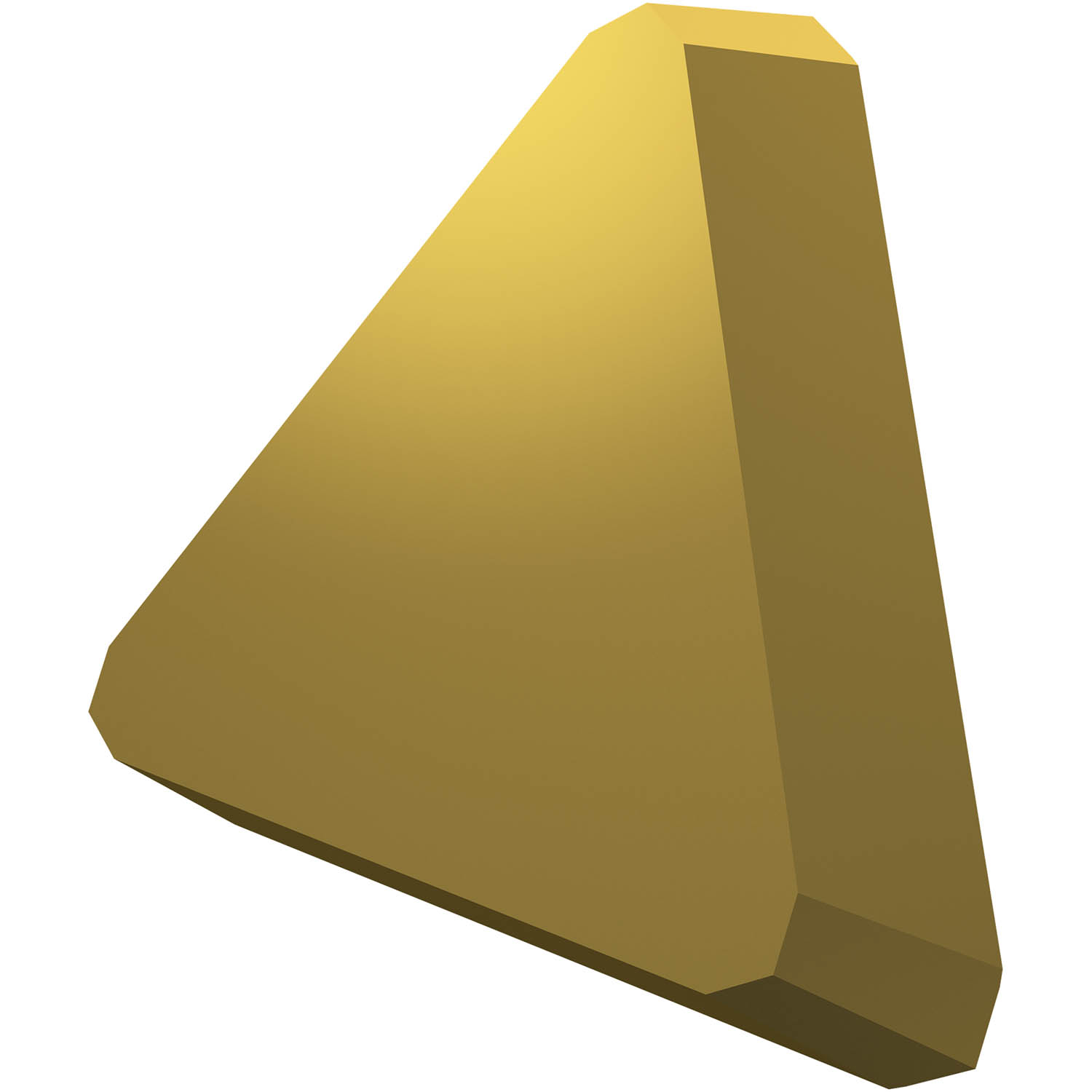

Single-sided milling insert TPCN 1603 with a plane rake surface, triangular for a maximum depth of cut of 12 mm, with an indexing accuracy according to ISO-tolerance class-C with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron.
Product Specifications
| EDP Number | 7451104 |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 16.1 mm |
| Cutting Edge Length (Inch) | 0.634" |
| Inscribed Circle Diameter (mm) | 9.53 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| M-Dimension (mm) | 2.45 mm |
| M-Dimension (Inch) | 0.096" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Wiper Edge Length (mm) | 1.2 mm |
| Wiper Edge Length (Inch) | 0.047" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
