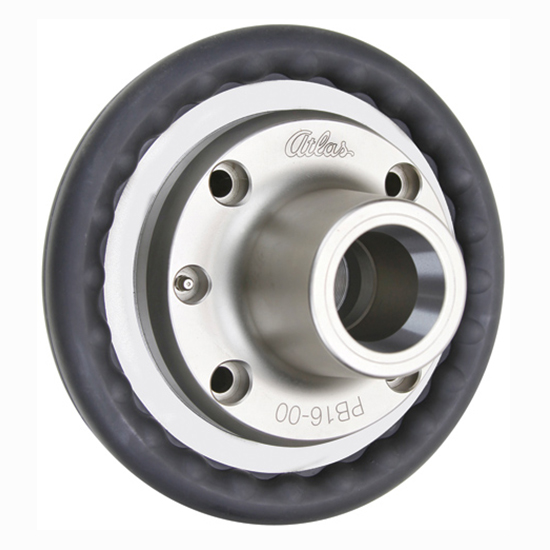

Features
- Fast and easy, front hand wheel operation
- Reduces operator fatigue
- Quick Change over Chuck to Collet Chuck - No linkages or drawtubes
- For 16C collets (Max 16C Gripping Round 1-5/8")
- One year warranty
- Accurate-Maximum cone TIR .0005"
- Available in D type (camlock), A type, L type (long tapered nose) threaded, Flat Back and 4 Degree taper
- Hand wheel teeth nitrided for longer life
- Body nickel plated for corrosion resistance
Product Specifications
| Item No. | PB16-D4 |
| Collet Type | 16C |
| Spindle | D1-4 |
| Round Capacity | 1.625 |
| Weight (lbs) | 36 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pratt Burnerd America
Collet Series:
16C
Spindle Size:
D1-4
Ships:
From Partner Facility
IsDiscontinued:
