Medium-Duty live centers are required where the weight of the workpiece is several hundred pounds. These centers are built with larger bearings to provide the support and strength required to handle heavier workpieces.

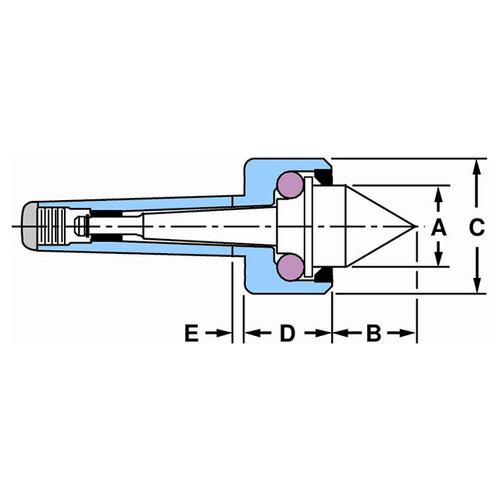

<Product Specifications
| # MFG | 34216 |
| Taper | 16 Jarno |
| Accuracy | ± 0.00004 |
| Point Length (Inch) | 2.125" |
| Max Workpiece Weight (lbs) | 4400 lbs. |
| Head Length (Inch) | 2.500" |
| Head Diameter (Inch) | 4.188" |
| Max RPM | 1000 |
| Point Diameter (Inch) | 2.125" |
| Gage Line to Back of Head (Inch) | 0.313" |
| Point Style | Standard Point |
| Series | Super Accurate Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
2.1250"
Length (mm):
53.98mm
Diameter (Inch):
2-1/8"
Diameter (Decimal Inch):
2.1250"
Diameter (mm):
53.98mm
