Features:
- Accuracy guaranteed to ±.00004
- Free turning Inpro labyrinth seal
- Heavy duty, tri-bearing design
- Full length through hardened spindle
- Body heat treated for additional strength

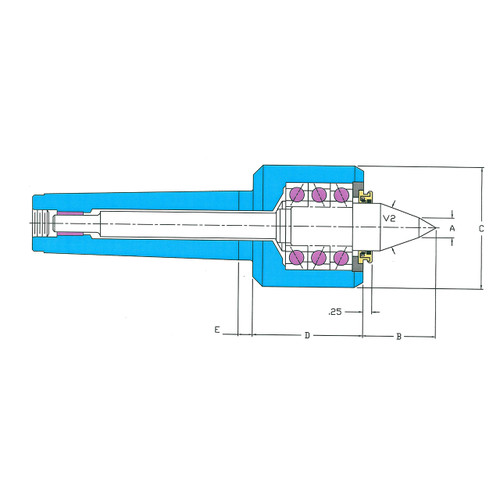

Product Specifications
| # MFG | 53905 |
| Taper | 5 Morse |
| Accuracy | ± 0.00004 |
| Point Length (Inch) | 2.250" |
| Max Workpiece Weight (lbs) | 1700 lbs. |
| Head Length (Inch) | 2.781" |
| Head Diameter (Inch) | 2.781" |
| Max RPM | 5000 |
| Point Diameter (Inch) | 0.563" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Point Style | Tracer Point |
| Series | C4T (Center for Tomorrow) Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
2.2500"
Length (mm):
57.15mm
Diameter (Inch):
9/16"
Diameter (Decimal Inch):
0.5630"
Diameter (mm):
14.30mm
